Designation:

K-4386 Typhoon-VDV

Info
Manufacturer: Remdisel JSC
Product type: Auxiliary Vehicles
Name: Mine protected carrier

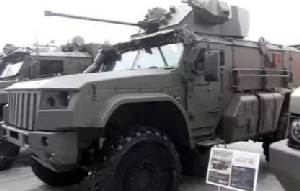

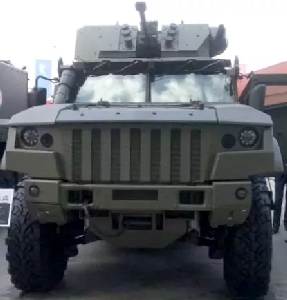

K-4386 Typhoon-VDV is a part of the family KAMAZ Typhoon for airborne troops, which has a mine protection.

The development of the project for a new armored vehicle for the airborne troops began in late 2015, and five months later the first prototype was launched for testing.

Among the requirements for the vehicle - the possibility of parachute landing, as well as protection against small arms and mines.

The vehicle is driven by a KAMAZ 610.10-350 350hp diesel engine - produced under Cummins license in Russia. The power pack allows the vehicle to move at top speed of 105 km/h with a range of up to 1200 km.

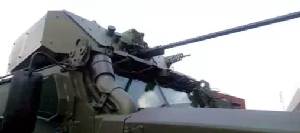

Vehicle has an EPOCH remotely-controlled veapon station with 2A42 30-mm gun, develped by the Central Research Institute BUREVESTNIK.


Specifications:
Property Value
Length (mm)
6000
Number of wheels
4
Number of drive wheels
4
Engine power output (h.p.)
350
Max. road speed (km/h)
105
Max. road range (km)
1200
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Ammunition of the auxiliary gun
1200
Ammunition of the main gun
300
Depression (degree)
-10
Elevation (degree)
60
Traverse arc (degree)
360
Weight (kg)
13500
Payload (kg)
2500
Width (mm)
2544
Height (mm)
2960
Ground clearance (mm)
420
Wheelbase (mm)
3750
Height to hull top (mm)
2422
Track (mm)
2154


Has folowing part:
Total Amount
2A42 (Gun)
1
DUBM-30 Epoch (Remote controlled weapon station)
1
