Designation:

RIV

Info
Manufacturer: NIMR Automotive LLC
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

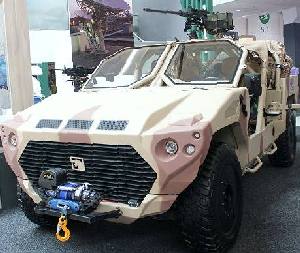

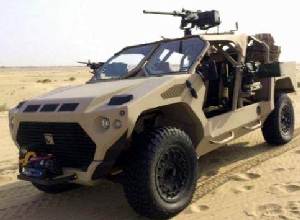

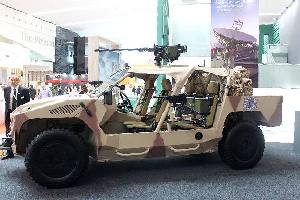

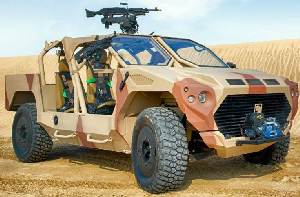

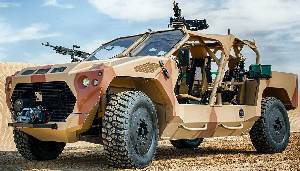

The NIMR (RIV) vehicle is a light 4×4 rapid intervention vehicle to enable high-speed response to tactical situations in remote sites, either by fast ground transit or helicopter insertion both underslung or inside a CH-47.The typical mission for the NIMR RIV is conceived using speed and mobility as the critical advantage enabling the crew of 4 to traverse diverse terrain at high speed, both on and off-road, armed with up to 12.7 mm machine gun.

The NIMR RIV will carry under-body blast protection as standard and modular applique armour packs for ballistic protection.

OPTIONAL EQUIPMENT

  • Battery management system (BMS)

  • Add on ballistic armour kit

  • Underslung structure

  • Central tyre inflation system (CTIS)

  • Run flat inserts (RFI)

  • Various weapon systems

  • C4I command & control

  • Tactical communications

  • Self-recovery winch

  • 6 seater option

  • Ride height control

  • Payload growth potential

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Crew
4
Fording depth (mm)
500
Vertical obstacle (mm)
300
Gradient (%)
60
Max. road speed (km/h)
160
Length (mm)
5250
Width (mm)
2000
Height (mm)
1850
Wheelbase (mm)
3280
Payload (kg)
1500
Weight (kg)
4000
Max. road range (km)
1000
Turning circle radius (mm)
15000
Number of forward gears
8
Engine power output (h.p.)
300
Maximum torque (Nm)
600
