Designation:

KALE

Info
Manufacturer: OTOKAR Otobus Karoseri Sanayi A.S.
Product type: Auxiliary Vehicles
Name: Mine protected carrier

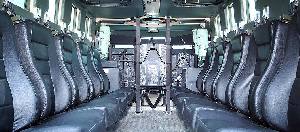

KALE is specially designed and developed as a Mine Resistant Ambush Protected Personnel Carrier. KALE provides enhanced mine and ballistic protection along with independent suspension system ensuring superior mobility in a wide range of demanding terrains under diverse climatic conditions. Single cabin monocoque body of KALE carries up to thirteen (13) people addition to driver, commander and gunner.

Export of all armoured vehicles subject to requirements of related governments' export licence regulations.

Standard Eguipment

  • Mine Resistant Seats

  • Electrically Controlled Mirrors

  • Air Conditioning System

  • Towing Eye

  • Blackout Lights

  • Radio and Antenna provisions

  • Spare Wheel

  • Central Tyre Inflation System - CTIS

  • Run-Flat Tyres

Optional Eguipment

  • Automatic Fire Suppression Systems

  • Self-Recovery Winch

  • Navigation System

  • Thermal Front Camera

  • Rear View Camera

  • Pre-heating System

  • NBC Filtration Kit

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Length (mm)
6900
Width (mm)
2570
Height (mm)
3800
Ground clearance (mm)
456
Weight (kg)
16000
Crew
3
Troops
10
Engine power output (h.p.)
296
Max. road speed (km/h)
100
Gradient (%)
60
Side slope (%)
30
Fording depth (mm)
800
Max. road range (km)
800


Has folowing part:
Total Amount
3000 (Transmission)
1
ISLe-300 (Diesel engine)
1
