Designation:

NMS

Info
Manufacturer: NUROL Mashinery and Industry Co Inc
Product type: Armoured Vehicles

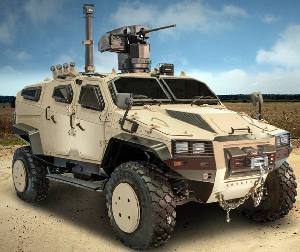

Name: Wheeled armoured personnel carrier

NMS, which is designed by Nurol Makina ve San. A.Ş. has V shaped monocoque body and indigenous chassis. Improvements that have been made in drive-train, make the vehicle extremely fast and maneuverable on a variety of conditions. Offering high protection at a lower weight brings unique superiority to the vehicle in combat areas against the most aggressive and asymmetric threats.

The vehicle designed for variety of missions, offers combat troops a range of capabilities ranging from carrying weapons systems to reconnaissance missions. NMS with next generation design and features, is a perfect combination of scalable armor and composite material.

NMS 4x4 Variants

  • SCOUT VEHICLE

  • MODULAR STRUCTURE / CARRIER

  • AIR DEFENCE SYSTEM

SURVIVABILITY FEATURES

  • Solutions for different protection and security needs

  • Escape glass

STRATEGICAL FEATURES

  • Approach and departure angles 54° and 62°

  • Ability to operate between -32°C +55°C

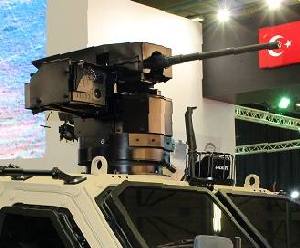

  • Integration of RCWS 7,62 mm / 12,7 mm

  • Integration of 40 mm / Air Defence System

SUPERIOR MOBILITY FEATURES

  • Front-rear fully independent suspension

  • 4x4 Continuous Drive (Differential Lock)

  • Dual circuit, disc on every wheel with ABS brake system

  • 335/80 R20 with runflat

  • Low center of gravity and superior road grip

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Weight (kg)
10000
Crew
2
Troops
9
Engine power output (h.p.)
300
Max. road speed (km/h)
140
Max. road range (km)
700
Turning circle radius (mm)
6000
Gradient (%)
70
Side slope (%)
40
Trench (mm)
900
Vertical obstacle (mm)
500
Fording depth (mm)
900
Length (mm)
4900
Width (mm)
2400
Height to hull top (mm)
2100
Ground clearance (mm)
425
Wheelbase (mm)
3450




Related Articles

Nurol Makina unveils its new Ejder 4x4 armoured combat vehicle at IDEF 2013 (13.05.2013)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

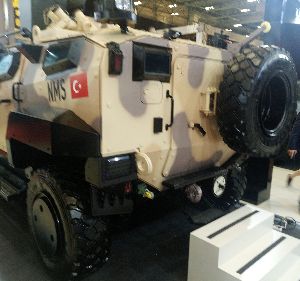

NMS

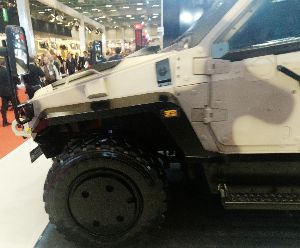

NMS

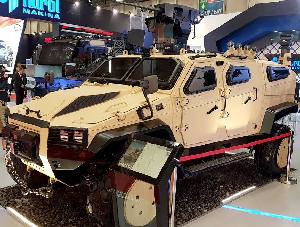

NMS
