Designation:

Fox LRPV

Info
Manufacturer: Jankel Armouring Ltd
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

The Fox fleet of light tactical 4x4 vehicles combines the strengths and reliabilities of a trusted OEM platform with enhancements that have never been seen before on a commercially available base vehicle.

It’s got the heart and soul of a Toyota, with the OE reliability, durability and customisation that brings. And now it comes with increased agility and modularity, bringing off-road performance and weight-carrying capacity that exceeds all expectations.

Fox LRPV (Long Range Patrol Vehicle) brings operational effectiveness to extended missions.

Fox LRPV allows between 4 and 6 occupants to cover more distance over longer periods. The platform firepower, manoeuvrability and supportability make it ideal for many roles from border patrol to surveillance/reconnaissance, first support/force protection, convoy support and use in urban operations. The vehicle offers a highly mobile fire support and tactical force protection platform and caters for a range of weaponry with configurable mounts at locations around the platform.

The vehicle has been developed to allow users to cover more distance over longer periods without failure with the ultimate goals to push into areas where the enemy would not expect it or manage extensive borders more effectively.

The vehicle offers a highly mobile fre support and tactical force protection platform. Holding between 4-6 occupants the Fox LRPV caters for a range of weaponry including, General Purpose Machine Gun (GPMG), Heavy Machine Gun (HMG 0.50) and Automatic Grenade Launcher (AGL) with confgurable mounts at locations around the platform.

The platform frepower, manoeuvrability and supportability makes it ideal for a number of roles including surveillance / reconnaissance, fre support / force protection, convoy support and use in urban operations.

Performance

  • Max speed: 170km/hr

  • Approach Angle: 35° - 45°

  • Ground Clearance: 260mm

  • Departure Angle: 28°- 32°

  • Wading: 700mm

  • Breakover angle: 150°

  • Fuels: Diesel or Petrol

  • Step climb: 300mm

  • Fuel Capacity: 180 litres (270 litre optional)

  • Range: (typical) 1500km

  • High Payload (specification dependent)

Typical Equipment Options

  • Rear traversing ring with mount for 7.62 mm MG/.50 cal MG/40 mm AGL and universal ammunition box holders

  • Front elevating commander’s seat with swing arm weapon mount

  • Recovery equipment

  • Zoned armour

  • Run-flat tyres

  • Weapon mount specific to customer

  • Storage cages and equipment racks

  • Communications fits (specific to customer)

  • NATO slave socket

  • 24V vehicle conversion

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Max. road speed (km/h)
170
Ground clearance (mm)
260
Vertical obstacle (mm)
300
Fording depth (mm)
700
Fuel capacity (l)
180
Max. road range (km)
1500
Crew
6




Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
10
FRANCE

Jul 2018
(Dec 2018)

Average Unit Cost:

All contracts...


Related Articles

General Dynamics Land Systems–UK showcases adaptable Foxhound vehicle at DSEI 2019 (23.09.2019)

Triple-digit million euro contract for Rheinmetall (14.10.2018)

Rheinmetall at DSEI 2017 (12.09.2017)

Jankel supports Belgian National Day at the Military & Civil Parade (25.07.2017)

Rheinmetall at IDEX 2017 (25.02.2017)

Rheinmetall wins ˆ135 million Bundeswehr order for survivability upgrades of Fuchs/Fox armoured transport vehicles (16.12.2016)

Rheinmetall creates Europe’s leading producer of military vehicles (01.02.2016)

Rheinmetall to Supply Kuwait With Advanced Armoured NBC Reconnaissance Vehicles (02.07.2015)

Ricardo joins forces in UK partnership to sustain and upgrade the Mastiff (29.11.2013)

Thailand’s Defence Technology Institute partners with Ricardo on new 8x8 vehicle (11.11.2013)

More Foxhound vehicles for British Army (12.09.2013)

Bundeswehr to get more high-protection Fuchs/Fox 1A8 transport vehicles from Rheinmetall (22.05.2013)

Ricardo receives order for a further 76 Foxhound vehicles (05.04.2013)

Rheinmetall to supply Bundeswehr with 7 Fuchs/Fox armoured vehicles for clearing IEDs (04.02.2013)

Rheinmetall to Supply Sensor Equipment for Bundeswehr Vehicles (01.02.2013)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

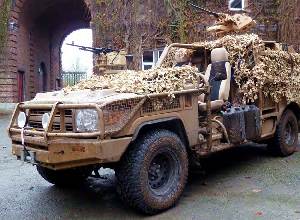

Fox LRPV

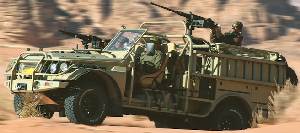

Fox LRPV
