Designation:

Fox RRV

Info
Manufacturer: Jankel Armouring Ltd
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

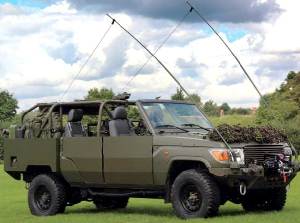

The Fox fleet of light tactical 4x4 vehicles combines the strengths and reliabilities of a trusted OEM platform with enhancements that have never been seen before on a commercially available base vehicle.

It’s got the heart and soul of a Toyota, with the OE reliability, durability and customisation that brings. And now it comes with increased agility and modularity, bringing off-road performance and weight-carrying capacity that exceeds all expectations.

In today’s ever changing world, tactical vehicles need the modularity to fulfl a variety of roles in order to offer the most cost effective capability. The Fox Rapid Reaction Vehicle (RRV) has been designed with enhanced weight carrying capacity, internal CH-47 air transportability and increased off-road agility to push the boundaries of payload, mobility and performance.

PERFORMANCE

  • Max speed: 170km/hr (106MPH)

  • Approach angle: 45°

  • Ground clearance: 260mm

  • Departure angle: 30° - 40° (confguration dependent)

  • Wading: 700mm

  • Breakover angle: 150°

  • Fuels: diesel (petrol optional)

  • Step climb: 300mm

  • Fuel capacity: 90 litres (130 litre optional)

  • Range: (typical) 900km (1,300km optional)

  • High payload (specifcation dependent)

Typical Equipment Options

  • Winch: front, rear, cargo-loading

  • Automatic transmission

  • Smoke dischargers

  • Infa-Red lighting

  • Communication suite

  • Digital instrument panel

  • Pull-out laptop compartment

  • Modular dash panel

  • Front rock-strike protection plate

  • Under-belly protection plate

  • Modular armour solution

  • Electrical system: 12v/24v DC

  • Personal weapon stowage

  • Front: post and cradle mounts for 7.62mm GPMG or 5.56mm

  • Main: 1,050mm ring (850mm ring optional) and soft-mounts for 0.50 cal or 7.62mm GPMG or 5.56mm

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Number of drive wheels
170
Ground clearance (mm)
260
Fording depth (mm)
700
Vertical obstacle (mm)
300
Fuel capacity (l)
90
Max. road range (km)
900



Fox RRV quantities:
Country Qnt
BELGIUM BELGIUM
100
Qnt:
100

Last Contracts:
Qnt Customer Value Add Date
(Close Date)
Unit cost
100
BELGIUM

Jun 2016
(Jul 2017)

Average Unit Cost:

All contracts...
