Designation:

HAFEET Ambulance

Info
Manufacturer: NIMR Automotive LLC
Product type: Armoured Vehicles
Name: Ambulance vehicle

DESCRIPTION

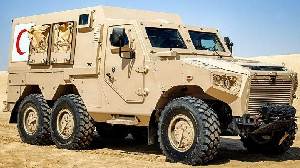

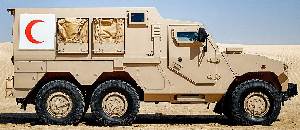

The HAFEET military ambulance vehicle is a 6×6 blast and ballistic protected armoured ambulance design to be highly configurable to provide trauma medical care for the wounded on the battlefield.

Side doors provide access to the cabin for the driver and commander while the crew of 1 medic, 2 stretcher patients and 2 sitting patients access via a rear door. The HAFEET Ambulance’s extended roof allows for extra head room inside the cabin, which can be equipped with a wide array of medical equipment.

The HAFEET multi-purpose platform can be configured for all military requirements at 15,000 kg capacity. A universal 6×6 chassis is utilised for a common logistic footprint for the user to minimise the burden of training, maintenance and spare parts management. All vehicles in the HAFEET class can be protected, and specific protected models are included for crew survivability with fully tested and certified cabins.

STANDARD EQUIPMENT

  • Battery management system (BMS)

  • Self-recovery winch

  • Central tyre inflation system (CTIS)

  • Run flat inserts (RFI)

  • Recovery tools

OPTIONAL EQUIPMENT

  • RPG protection net

  • Medical equipment fit to user requirements

  • Fuel tank protected

  • Critical engine ballistic protection

  • Overpressure protection system against biological and chemical threats

  • Fire suppression system

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Length (mm)
7000
Width (mm)
2600
Height (mm)
2700
Wheelbase (mm)
3300
Payload (kg)
1750
Weight (kg)
15000
Max. road speed (km/h)
110
Max. road range (km)
700
Crew
3
Operating temperature, min (degree, C)
-19
Operating temperature, max (degree, C)
49
Turning circle radius (mm)
18
Number of forward gears
6
Engine power output (h.p.)
360
Maximum torque (Nm)
1100
Fording depth (mm)
900
Vertical obstacle (mm)
400
Gradient (%)
60
