Designation:

AJBAN LRSOV

Info
Manufacturer: NIMR Automotive LLC
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

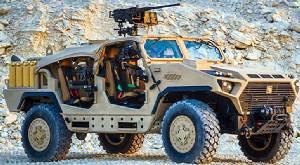

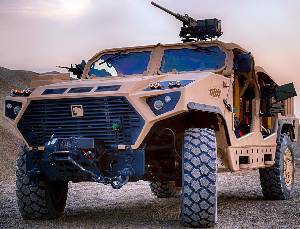

The NIMR AJBAN Special Operations Vehicle (LRSOV) is an open-top 4×4 long-range reconnaissance vehicle designed for use by Special Forces.

Light and powerful, capable of accessing all terrains in addition to being helicopter transportable, the vehicle can be customised to accommodate a range of user specified equipment.The AJBAN LRSOV is based on NIMR’s multi-purpose platform, developed to meet various military requirements from utility vehicles to fully protected tactical vehicles. The LRSOV seats 4 crew with an optional 5th seat, providing all round situational awareness and self-defence from a high mounted heavy machine gun ring and gun mounts at all crew positions. The vehicle can optionally be fitted with ballistic and blast protection.

The modular configuration of the vehicles allows for multi-mission variants to suit the user requirements, with NIMR developing bespoke configurations from base vehicle architecture if required.

STANDARD EQUIPMENT

  • Recovery tools

  • Central tyre inflation system (CTIS)

  • Run flat inserts (RFI)

OPTIONAL EQUIPMENT

  • Battery management system (BMS)

  • Night vision

  • Display monitor

  • Blast belly plate

  • Ballistic armour kit

  • C4I command & control

  • High capacity winch

  • Personal weapon mounts

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Crew
4
Max. road speed (km/h)
110
Fording depth (mm)
1000
Vertical obstacle (mm)
400
Gradient (%)
60
Length (mm)
5680
Width (mm)
2130
Height (mm)
1970
Wheelbase (mm)
3300
Payload (kg)
3000
Weight (kg)
8000
Max. road range (km)
700
Operating temperature, min (degree, C)
-19
Operating temperature, max (degree, C)
49
Turning circle radius (mm)
15000
Number of forward gears
6
Engine power output (h.p.)
296
Maximum torque (Nm)
1100
