Designation:

Lis-PM

Info
Manufacturer: Volat - OJSC Minsk Wheel Tractor Plant - MZKT
Product type: Auxiliary Vehicles
Name: Tactical vehicle

Lis-PM 4×4 is a special armored vehicle, designed and manufactured by the Minsk Wheeled Tractor Plant (MZKT). For the first time the car was demonstrated in 2015 at the military parade in Minsk in honor of the Victory in the Great Patriotic War.

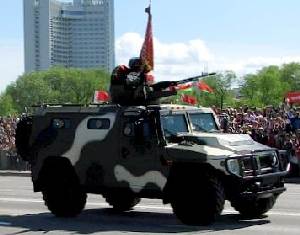

The variant demonstrated on the parade was armed with a 12.7-mm NSV machine gun and a 30-mm AGS-17 grenade launcher.

Lis-PM is designed to carry up to 10 people. The vehicle is designed to quickly move troops and various equipment on the roads and off-road and can be used as an operational-service, service-tactical and transport vehicle for the needs of the Ministry of Defense. It has a chassis frame structure with a traditional engine arrangement in front under the hood, crew in the middle compartment and the rear cargo compartment. There is an armor protecting class 5. With a range of 900 km, the Lys-PM has maximum speed up to 120 km/h.

Standard equipment is: power steering, independent torsion suspension with hydraulic shock absorbers and stabilizer, transfer case with a locked central differential, axis with increased friction differentials, dual-range transmission, central tire inflation system, engine heater and electric winch.

Lys-PM is a subject of cooperation between the military-industrial complex of Russia and Belarus. The localization of the vehicle is 85%.

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Crew
2
Troops
8
Max. road speed (km/h)
120
Max. road range (km)
900
Main weapon caliber (mm)
12.7
Grenade launcher calibre (mm)
30
