Designation:

WOLFDOG

Info
Manufacturer: Zetor Engineering, s.r.o.
Product type: Auxiliary Vehicles
Name: Mine protected carrier

TRACKED VEHICLE DESIGN FAMILY

The first design by Zetor Engineering for the defence sector is a tracked vehicle. This will create a mobile platform for whole family of vehicles in different versions for next few decades (2020-2050). The first version of the design is an infantry fighting vehicle (IFV).

VEHICLE FEATURES

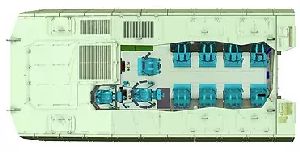

  • Spacious internal volume to accomodate a crew of 3+8 soldiers

  • High mobility and crew comfort based on a powerful, high-performance engine and hydro-pneumatic suspension

  • The ballistic protectino is STANAG 4569 levels 4 and 5

  • Anti-mine and under-vehicle blast protection is STANAG 4569 level 4a and 4b

  • Ballistic protection with add-on-armour up to STANAG 4569 level 6 on front

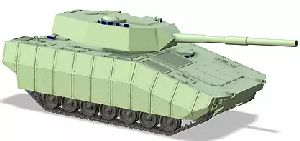

  • Armament will be customer adaptive for the whole vehicle family: from a 12.7 mm RCWS and RC turret (30-35mm) up to a manned turret with a 120 mm tank gun.

Specifications:
Property Value
Weight (kg)
49000
Crew
3
Troops
8
Length (mm)
7844
Width (mm)
3700
Height (mm)
2770
Height to hull top (mm)
2140
Track (mm)
3190
Ground clearance (mm)
500
Length of track on ground (mm)
4380
Vertical obstacle (mm)
895
Fording depth (mm)
1200
