Designation:

CALIBER MK4

Info
Manufacturer: ICOR Technology
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

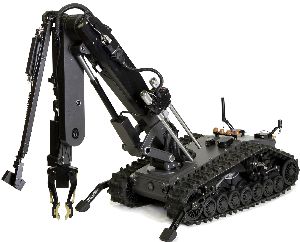

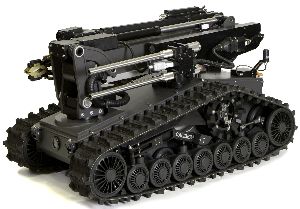

The largest robot in the CALIBER® family, the CALIBER MK4 offers unprecedented towing and dragging capabilities coupled with speed, agility and dexterity—all at an affordable cost.

The MK4 is the most powerful of all CALIBER robots, with a lift capacity of 200 lbs (90 kg). Its Command & Control Unit provides automatic preset positioning to facilitate rapid deployment; and a 3D avatar that offers real-time positional feedback on the actual position of the robot.

Based on recommendations by bomb technicians, the robot’s modular design allows for reduced maintenance costs through easy platform upgrades, field repair, and parts replacement.

STANDARD FEATURES

  • Command Control Unit (CCU) with two 15” (38 cm) daylight readable touch screens

  • 3D avatar with real-time positional feedback and auto-stow and arm-ready presets

  • Multi-function control, variable speed joystick

  • Wireless digital system operating in 1.4 GHz COFDM (Coded Orthogonal Frequency Division Multiplexing) for distortion-free video image transmission

  • Includes one 26 Ah, 48V quick-charge, rechargeable, lead-acid battery

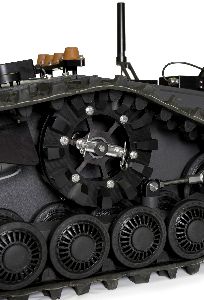

  • Tracked with 3-speed drive system

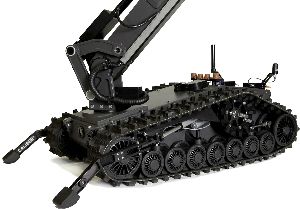

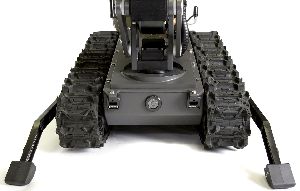

  • Lifts up to 200 lbs (90 kg) with arm retracted, and 100 lbs (45 kg) with arm extended with outriggers

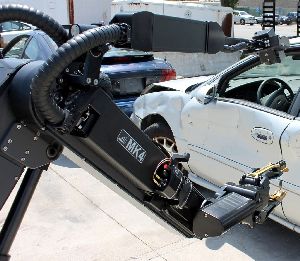

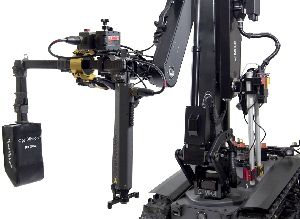

  • 360° rotating claw equipped with standard Picatinny rails

  • 12” (30 cm) gripper opening

  • 113” (287 cm) vertical reach

  • 86” (218 cm) horizontal reach from chassis

  • Distance measuring sensor

  • 7 x color camera

  • 4 x Aiming Green Lasers

  • 2 x Firing Circuits (2 x weapons)

  • Turret Rotate: 0-180°

  • Turret Tilt: 0-180°

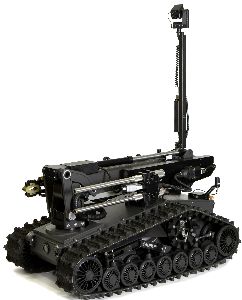

  • LED lights: front, rear, flood lights, arms and pan-tilt-zoom (PTZ) camera

  • Motorized tow hitch: remotely adjustable tow hitch for towing battle wagon


Specifications:
Property Value
Time of continuous operation (hours)
2
Width (mm)
750
Height (mm)
870
Length (mm)
1400
Weight (kg)
333
Payload (kg)
90
