Designation:

QN-506

Info
Manufacturer: Wuhan Guide Infrared Co., Ltd.
Product type: Armoured Vehicles
Name: Fire support vehicle

QN-506 Fire Support Vehicle was developed by Wuhan Guide Infrared and is designed to suppress enemy forces in urban areas and during counterterrorism operations.

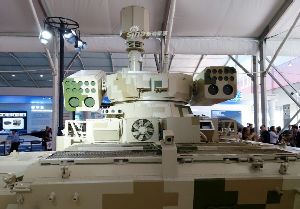

The base of the QN-506 is a chassis of Type 59 tank, on which the ZPT99 weapon station is mounted. The crew consists of 3 people - the driver, the commander and the gunner.

The combat weight of the wehicle is 30 tons, while the QN-506 has possibility to upgrade in the future.

Universal ZPT99 weapon station has the following weapons:

  • 30-mm automatic gun, similar to the Soviet 2A72 (ammunition of 80 armor-piercing tracer and 120 high-explosive fragmentation projectiles)

  • 7.62-mm machine gun ( ammunition of 2000 rounds)

  • Two modular launchers with ammunition: 4 QN-502 anti-tank guided missiles with a combined control mode (developed by Wuhan Guide Infrared), which have a range of attack speed and air targets of 6 kilometers, and 20 units of 70-mm QN-201 missiles

  • Four S570 missiles, which are located in slanted launchers in the rear of the ZPT99 weapon station.

  • Anti-personnel active protection complex

  • Integrated drone

  • Counter-sniper fighting devices

Specifications:
Property Value
Weight (kg)
30000
Crew
3
Main weapon caliber (mm)
30
Ammunition of the main gun
300
Auxiliary gun calibre (mm)
7.62
Ammunition of the auxiliary gun
2000


Has folowing part:
Total Amount
ZPT99 (Fire support vehicle)
1
