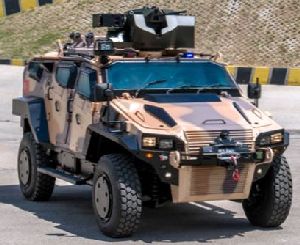

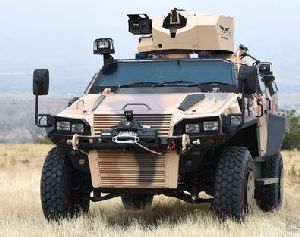

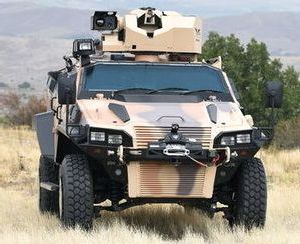

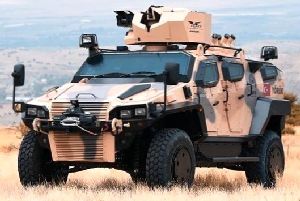

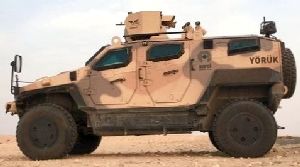

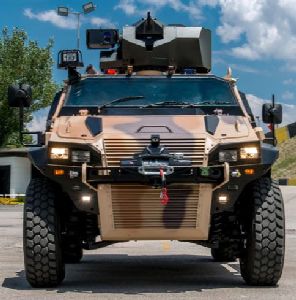

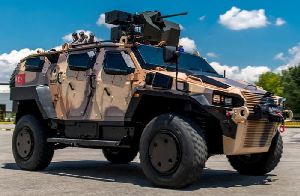

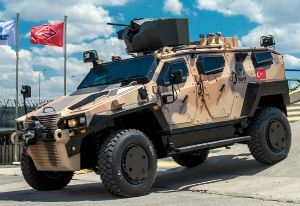

Designation:

Yoruk NMS

Info
Manufacturer: NUROL Mashinery and Industry Co Inc
Product type: Armoured Vehicles
Name: Reconnaissance Vehicle

NMS, which is designed by Nurol Makina ve San. A.Ş. has V shaped monocoque body and indigenous chassis. Improvements that have been made in drive-train, make the vehicle extremely fast and maneuverable on a variety of conditions. Offering high protection at a lower weight brings unique superiority to the vehicle in combat areas against the most aggressive and asymmetric threats.

The vehicle designed for variety of missions, offers combat troops a range of capabilities ranging from carrying weapons systems to reconnaissance missions. NMS with next generation design and features, is a perfect combination of scalable armor and composite material.

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Crew
5
Troops
4
Weight (kg)
10000
Max. road speed (km/h)
140
Max. road range (km)
700
Engine power output (h.p.)
300
Maximum torque (Nm)
813
Turning circle radius (mm)
6000
Length (mm)
4900
Width (mm)
2400
Height (mm)
2100
Wheelbase (mm)
3450
Ground clearance (mm)
425
Gradient (%)
70
Side slope (%)
40
Trench (mm)
900
Vertical obstacle (mm)
500
Fording depth (mm)
900


Has folowing part:
Total Amount
SARP ZAFER (Remote controlled weapon station)
1



Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

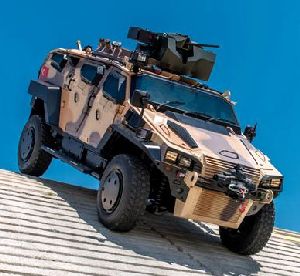

Yoruk NMS

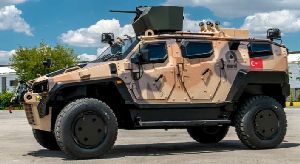

Yoruk NMS

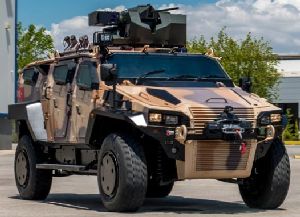

Yoruk NMS
