Designation:

Didgori

Info
Manufacturer: Tbilisi Armor Repair Plant
Product type: Armoured Vehicles
Name: Self-propelled mortar

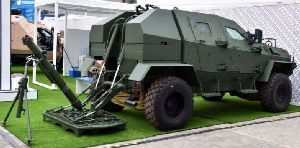

The mortar system is based on the Didgori Meomari modular platform and is equipped with a hydropneumatic mechanism for deploying and folding a 120 mm mortar located in the rear of the vehicle. When deployed, the mortar positioned on a base plate, which, when fired from a mortar, directs the recoil energy to the ground.

The mortar complex has a total combat weight of 8,200 kg, the crew of five people.

The armor hull, like the base Didgori Meomari, is made with spaced armor, with a declared level of ballistic protection of the BR7 according to the European standard EN1063 (protection from a reinforced bullet of 7.62 × 51 mm NATO cartridge from a distance of 10 m).

Specifications:
Property Value
Main weapon caliber (mm)
120
Number of wheels
4
Number of drive wheels
4
Weight (kg)
8200
Crew
5
Engine power output (h.p.)
300
Max. road speed (km/h)
120
Max. road range (km)
500
