Designation:

32V01

Info
Manufacturer: OAO Central Research Institute BUREVESTNIK
Product type: Turrets

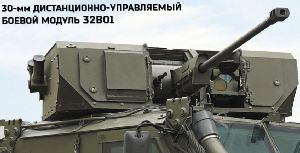

Name: Remote controlled weapon station

30mm 32V01 unmanned turret is designed for:

  • engagement of enemy personnel (wearing individual body armor), firing assets and unarmored/ lightly armored equipment;

  • reconnaissance and target recognition, surveillance over the environment.

When integrated on armored combat vehicles, the Turret acts as the main armament system.

Benefits of the Turret integrated on a combat vehicle:

increase in combat effectiveness due to:

  • use of the weapon system with a modern Fire Control System;

  • firing ammunitions with controlled remote detonation (option).

better ergonomics due to:

  • remote control of the weapon system;

  • more useful space as compared to manned counterparts;

  • elimination of fumes contamination in the crew compartment.

better crew protection due to:

  • the crew seats are inside the armored hull (outside the combat module);

  • ammunitions are outside the crew compartment.

higher operating characteristics due to:

  • splitting of the Unmanned Turret into functionally complete units;

  • good serviceability due to easy access to all assemblies and modules;

  • remote diagnosis and troubleshooting.

Specifications:
Property Value
Main weapon caliber (mm)
30
Auxiliary gun calibre (mm)
7.62
Firing range (m)
4000
Depression (degree)
-10
Elevation (degree)
60
Traverse arc (degree)
360
Ammunition of the main gun
300
Ammunition of the auxiliary gun
1000
Weight (kg)
1500


Has folowing part:
Total Amount
2A42 (Gun)
1
