Designation:

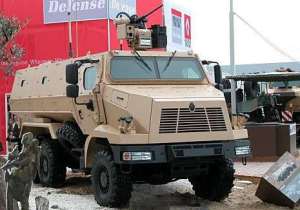

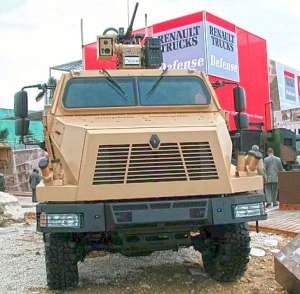

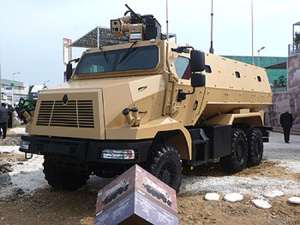

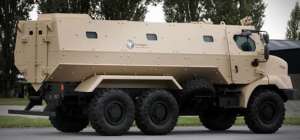

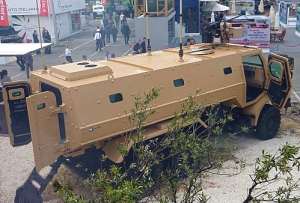

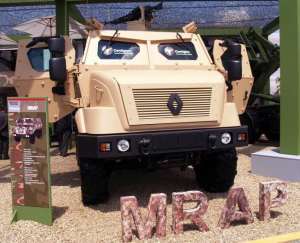

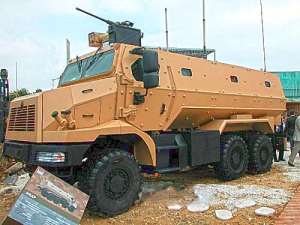

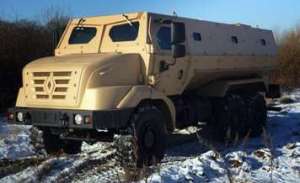

Sherpa Medium MRAP

Info
Manufacturer: Renault Trucks Defence - RTD
Product type: Auxiliary Vehicles
Name: Mine protected carrier

Renault Trucks Defense’s MRAP combines the excellent off-road mobility of the Sherpa Medium 6x6 tactical vehicle with the very high level of protection of its specially designed “V-shaped” armoured cab (ballistic, mine and IED protection).

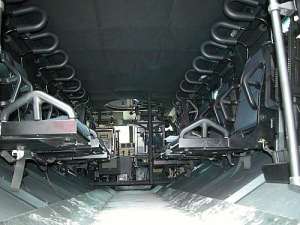

The MRAP is ideally suited for tactical missions such as troop transport in asymmetric combat areas. Its large volume and payload accommodates up to 12 soldiers with their equipments. The MRAP is also fitted for a roof mounted weapon system.

Engine

Type: Renault MD-7

Specifications: Diesel - 6 cylinders High pressure Common rail injection

Emission compliance: Euro V (Euro III also available)

Max power: 247 kW (340 hp) at 2300 rpm

Max torque: 1306 Nm at 1200-1700 rpm

Driveline & Transmission

  • _Wheeldrive Road: 6x4

  • _Wheeldrive (off-road): 6x6

  • _Gearbox: ZF 9S1310 mechanical (8+1 speeds)

  • _Transfer box: Separated from the gearbox

  • _Steering: Hydraulic power assisted

  • _Tyres: 395/85 R 20

  • _Suspensions: Double parabolic leaf springs - Telescopic shock absorbers - Stabilizer bar

  • _Brakes: 6 discs brakes with ABS

Air transport

  • A400M, C-130

Specifications:
Property Value
Weight (kg)
20000
Payload (kg)
4000
Wheelbase (mm)
5850
Length (mm)
7000
Width (mm)
2500
Height (mm)
3000
Ground clearance (mm)
490
Troops
12
Engine power output (h.p.)
340
Max. road speed (km/h)
90
Max. road range (km)
850
Fuel capacity (l)
310
Fording depth (mm)
1200
Vertical obstacle (mm)
500
Trench (mm)
900
Gradient (%)
60
Side slope (%)
30
