Designation:

LCT-30

Info
Manufacturer: DENEL LAND SYSTEMS, DLS
Product type: Turrets
Name: Turret

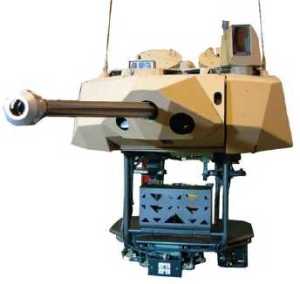

The Denel LCT30 turret is fitted with a 30mm gun and a co-axial gun. The huge spent 30mm cartridge will be ejected from an opening next to the gun barrel. One Ingwe box missile launchers can also be fitted to each side of the turret.

TECHNICAL DATA

ARMAMENT

  • Main gun - ATK 30 mm Mk 44 Bushmaster

  • Ammunition type - 30mm x 173, NATO standard

  • Available rounds - 65 ready rounds

  • Firing rate - Single shot and burst firing up to 200 rounds per minute

  • Co-axial machine gun - 7.62 x 51 mm, 800 ready rounds

OBSERVATION

  • Gunner - 220º degrees vision by means of unity magnification episcopes

  • Commander - 360º degrees vision by means of unity magnification episcopes(excluding area concealed by commander sight)

  • Gunners sight - Alternative sight systems can be incorporated with minimum modifications to suit the user requirements

  • Direct view optic characteristics - Mechanically slaved to the main weapon (Optical sight Option 1); Magnification and field of view (FOV) - 8 x 80 (H) x 5,40 (V)

  • CCD characteristics - Slaved to main weapon (Television sight Option 2); Field of view (FOV) - Narrow-, intermediate and wide

  • Laser rangefinder: Type - Nd-YAG (optional eyesafe LRF), Range - 10 km, Accuracy - 5 m

  • Night vision: Type - 2nd generation 8-12m, 228 x 4 or 3rd generation 3-5 CMT, 388 x 288; Field of view (FOV) - 3,30 (H) x 2,30 (V) Narrow or 8,30 (H) x 5,70 (V) wide

  • Commanders sight: Alternative sight systems can be incorporated with minimum modifications to suit the user requirements

  • DVO OPTICAL:(Optional sight, 1 x axis stabilised Option 1); Magnification10 x narrow field of view, 3 x wide field of viewsField of view (FOV)50 - narrow, 160 - wide

  • CCD: (Television sight, 2 x axis stabilised Option 2)Field of view (FOV)Narrow, intermediate and wide FOV

  • Auxiliary sight - Roof mounted sight slaved to the main weapon

  • GUN CONTROL SYSTEM: Electro-mechanical, 24V DC, brushless servo motors, 2 axis primary stabilised <0,4 mrad (1 sigma) in elevation and traverse (dependent upon vehicle base motion); Elevation range -10º to +30º; Control configuration - Double-handed yoke for gunner and commander

  • FIRE CONTROL SYSTEM: Full solution fire to the move, hunter killer and night fighting with coincidence firing, logic, cant, and meteorological sensors

  • COMMAND, CONTROL AND COMMUNICATION: Telecommunication system; Radio communication (voice and data) and intercom; Optional extras; Navigational system and battle management system

  • SMOKE GRENADE LAUNCHES: 8 x NATO standard 81 mm smoke grenades (or alternative as per user requirement)

Specifications:
Property Value
Main weapon caliber (mm)
30
Ammunition of the main gun
60
Auxiliary gun calibre (mm)
7.62
Ammunition of the auxiliary gun
600
Crew
2
Elevation (degree)
30
Depression (degree)
-10
Traverse arc (degree)
360
Number of smoke grenade launchers
8

Included in:
Product Amount
ASCOD (PIZARRO/ULAN) (Infantry fighting vehicle)
1
AV8 Gempita (Wheeled armoured personnel carrier)
1
PANDUR (Wheeled armoured personnel carrier)
1
Piranha III 8x8 (Wheeled armoured personnel carrier)
1
Ratel (Wheeled armoured personnel carrier)
1
Warrior (Infantry fighting vehicle)
1

Has folowing part:
Total Amount
CamGun GI 30 (Gun)
1
EMAK (Gun)
1
MK44 30 Bushmaster (Gun)
1
