Designation:

Bars BRShM

Info
Manufacturer: Military Industrial Company LLC - VPK
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

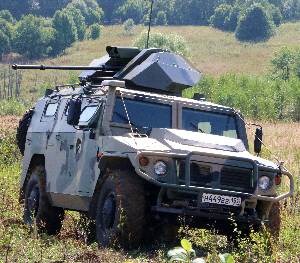

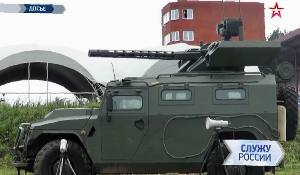

The Armored Reconnaissance and Assault Vehicle (BRShM) is intended for use as a vehicle of the special forces during counter-terrorist operations, rot territorial defense missions, escorting and guarding convoys. It protects the crew from fire of main types of small arms and the damaging factors of explosive devices.

The vehicle can be controlled both directly by crew and remotely. Remote control can be performed by the operator from a distance of up to 3 km via radio.

The vehicle is driven by a diesel engine YaMZ-4357-10 with a power of 215 hp, aggregated with a mechanical five-speed gearbox. Distributing box - two-stage, with interaxle locked differential and blocking wheel differentials.

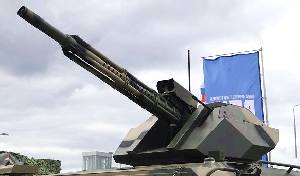

Armament is a remote controlled weapon station, armed with an 30-mm automatic gun and a coaxial 7.62-mm machine gun. The fire control system provides a range of targets detecting in the daytime up to 6 km, at night to 3 km.

Specifications:
Property Value
Main weapon caliber (mm)
30
Ammunition of the main gun
200
Auxiliary gun calibre (mm)
7.62
Ammunition of the auxiliary gun
1000
Engine power output (h.p.)
215
Traverse arc (degree)
360
Depression (degree)
-10
Elevation (degree)
45
Max. road speed (km/h)
120
Weight (kg)
8800
Number of wheels
4
Number of drive wheels
4
Distance of remote control (m)
3000


Has folowing part:
Total Amount
2A72 (Gun)
1
ABM-BSM30 Vihr (Remote controlled weapon station)
1
YaMZ-5347 (Diesel engine)
1
