Designation:

R-168-0,5UE

Info
Manufacturer: Yaroslavl Radioworks Corp.
Product type: C4ISR
Name: Radio station

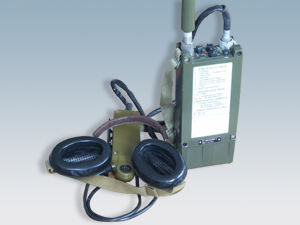

The R-168-0,5UE VHF handheld radio station provides clear and secure radio communications at a platoon-company tactical command level.

Components:

  • transceiver

  • control console with microphone-telephone handset

  • ASh-1.5 antenna

  • prime power supply source 10NKGTs-0,94

  • SPTA single set.

  • bag

  • operating and technical documentation set

Additionaly, at consumer's requers it is possible to deliver a record console, lambda-shaped antenna, charging unit, converter solar energy to electrical one, shoulder antenna ASh-0,75N.

Type of Operation:

  • FM telephony

  • 16 kb/s secure voice telephony

  • data transmission at the rate of 1.2 to 16 kb/s

Operation modes:

  • simplex or two-frequency simplex

  • operation with noise suppressor

  • automated radio data recording

  • operation at 4 preset frequencies

  • economiser

  • tone signal reception and transmission

Particularities:

  • functional-modular design allows rapid in-field repairs by simply replacing faulty modules

  • possibility of operation by operators of different qualification

  • availability of a built-in cyphering device

  • transceiver is produced as a seal, impact-strength, dust and waterproof case of aluminium alloy

  • R-168-0,5UE replaces R-163-1U (4.5 kg), R-158 (6 kg)

Specifications:
Property Value
Weight (kg)
2.6
Width (mm)
57
Height (mm)
104
Length (mm)
27
