Designation:

LAG 40 SB

Info
Manufacturer: General Dynamics Santa Barbara Sistemas
Product type: Weapons & Weapon Systems
Name: Automatic grenade launcher

The LAG 40 SB is a new concept in lightweight, user friendly and low maintenance grenade launchers. It is a stable, accurate and very reliable weapon that is highly successful in the international market. It is an automatic, belt-fed weapon firing 40 x 53 grenades at a rate of 215 shots per minute with an effective range of 1500 meters. The grenades are effective at distances of between 50 and 2000 meters, thus providing utmost response capacity in the most varying tactical situation.

Development

The 40 mm SB40 LAG automatic grenade launcher has been developed as a private venture by Santa Barbara for infantry applications, where it is normally mounted on a tripod, and for installation in armoured fighting vehicles, trucks, coastal craft and helicopters.

The 40 mm SB40 LAG automatic grenade launcher has now completed development and in 1992 the Spanish Army took delivery of a preproduction batch of 60 weapons for extensive user trials in the tripod mounted infantry support role. Current production models are designated the 40 SB-M1.

The 40 mm SB0 LAG automatic grenade launcher is now in service with the Spanish Army in various configurations including the standard infantry tripod mounted version and installation on 4 x 4 vehicles, M113 series tracked and BMR-600 (6x6) armoured personnel carriers.

Advantages

The operating principle is based on a long recoil system, the most appropriate to limit the stress on the mount, thereby increasing versatility. The LAG 40 SB may be fed from right or left by merely changing the position of some parts, which provides greater user flexibility.

Characteristics

Its operating principle ensures that firing can only occur when the bolt is locked, which makes it the safest weapon of its kind for the user. Its rate of fire allows defeating targets accurately at any distance while keeping the ammunition expenditure within reasonable limits. The LAG 40 SB has been designed to ensure a maximum operating capacity in all tactical conditions and its mount allows the use of day and night sights.

General Data

Caliber: 40 mm; System: long recoil; Feed: linked ammunition; Feed direction: left/right; Rate of fire: 215 rpm; Firing mode; automatic.

Mass

Weapon: 34 kg. Tripod: 22 kg. Cradle: 11 kg (24) / 13 kg (32). Case: 12 kg (24 rounds) / 19 kg (32 rounds).

Dimensions

Length: 996 mm. Width: 350 mm. Height: 250 mm. Barrel Length: 415 mm.

Ballistic Data

Muzzle velocity: 240 m/s. Maximum range: 2200 m. Effective range: 1.500 m.

Specifications:
Property Value
Weight (kg)
34
Length (mm)
996
Width (mm)
360
Height (mm)
250
Ammunition of the main gun
32
Main weapon caliber (mm)
40
Rate of fire (rds/min)
215

Included in:
Product Amount
TC-19 (Turret)
1



Related Articles

IVECO DEFENCE VEHICLES AWARDED CONTRACT TO DELIVER A NEW GENERATION OF MEDIUM MULTIROLE PROTECTED (24.09.2019)

Counterfeit aero engines threaten international aviation security (08.02.2019)

U.S. Army Awards AM General $51.3 Million Contract For High Mobility Multipurpose Wheeled Vehicles (07.10.2018)

AM General Awarded 5-Year Requirements Contract For Up To 2,800 M997A3 HMMWV Ambulances (07.10.2018)

SAAB Receives Order From KMW For Mobile Camouflage Systems (19.12.2017)

Rheinmetall modernizing 25 more Marder IFVs for Jordan (15.12.2017)

AM General Highlights Light Tactical Vehicle Readiness Initiatives at 2016 Modern Day Marine Exhibition (01.10.2016)

Otokar to introduce TULPAR-S APC at Eurosatory (02.07.2016)

CMI Defence introduces the world’s first UAV integration in a combat turret (16.06.2016)

AM General Awarded $42 M in Additional Funding for Domestic and International HMMWV Sales (13.10.2015)

British Army Extends Virtual Trainer Contract with £11 Million for Additional Support (19.09.2015)

AM General Secures 6-Year, $428.3 M To Provide The Army With M997A3 HMMWV Configured Ambulances (10.09.2015)

GD UK Completes CDR for SCOUT Reconnaissance Variant (02.03.2015)

AM General BRV-O JLTV Completes Engineering Manufacturing and Development Offroad Testing (18.07.2014)

Textron Systems` Light Armaments Team to Develop Lightweight, Cased-Telescoped Small Arms for U.S. Army (14.05.2014)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

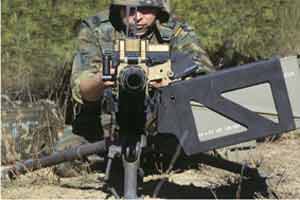

LAG 40 SB

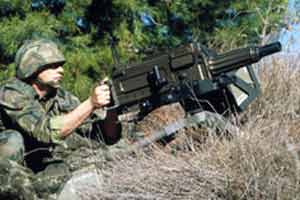

LAG 40 SB
