Designation:

TAM VCTP

Info
Manufacturer: TAMSE Tanqu Argentino Mediano Sociedad Del Estado
Product type: Armoured Vehicles
Name: Infantry fighting vehicle

A number of variants were built on the same chassis as the TAM tank. The original program called for the design of an infantry fighting vehicle, and in 1977 the program finished manufacturing the prototype of the Vehículo de Combate Transporte de Personal (Personnel Transport Combat Vehicle), or VCTP. The VCTP is able to transport a squad of 12 men, including the squad leader and nine riflemen. The squad leader is situated in the turret of the vehicle; one rifleman sits behind him and another six are seated in the chassis, the eighth manning the hull machine gun and the ninth situated in the turret with the gunner. All personnel can fire their weapons from inside the vehicle, and the VCTP's turret is armed with Rheinmetall's Rh-202 20 mm (0.79-inch) autocannon. The VCTP holds 880 rounds for the autocannon, including subcaliber armor-piercing DM63 rounds. It is also armed with a 7.62 mm FN MAG 60-20 machine gun mounted on the turret roof. Infantry can dismount through a door on the rear of the hull. The commander has a day sight and seven observation periscopes, while the gunner has a day sight and three observation periscopes.

Specifications:
Property Value
Crew
2
Troops
10
Weight (kg)
28000
Length (mm)
6830
Width (mm)
3320
Height (mm)
2680
Main weapon caliber (mm)
20
Auxiliary gun calibre (mm)
7.62
Engine power output (h.p.)
720
Max. road speed (km/h)
80
Max. road range (km)
590
Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
1000
Trench (mm)
2500
Fording depth (mm)
1500


Has folowing part:
Total Amount
MB 833 Ka M-500 (Diesel engine)
1

TAM VCTP quantities:
Country Qnt
ARGENTINA ARGENTINA
183
Qnt:
183

Related Articles

FLIR Wins U.S. Army Heavyweight Robot Contract Worth Up to $109M (06.12.2019)

Problems of Russian Vacuum APFSDS-T projectile (25.01.2019)

U.S. Army Awards AM General $51.3 Million Contract For High Mobility Multipurpose Wheeled Vehicles (07.10.2018)

HDT Global Hunter WOLF Awarded Phase II SMET Contract (10.01.2018)

Tata Motors signs MOU with Indonesia’s PT Pindad (20.11.2016)

AT Communication is pleased to announce the expansion of its Tactical range of transceivers with the launch of the Sentry-H™ High Frequency (HF) SDR radio (22.09.2016)

AM General awarded $356 million contract to build 1,673 hmmwvs (12.08.2016)

WFEL extends US Army contract with £30m upgrade deal (21.07.2016)

Polaris Defense Unveils Turbo Diesel MRZR (19.05.2016)

AT Communication is pleased to announce the launch of the AT USB-Logger for Voice and Data (27.10.2015)

GD UK awarded GBP 3.5 Bn to deliver 589 SCOUT SV platforms to the British Army (04.09.2014)

BAE Completes 2,000 Miles of Hybrid GCV Mobility Testing Ahead of Schedule (27.08.2013)

Bushmaster - 1000 strong and still going (13.06.2013)

Navistar Defense Showcases Best In Light Tactical Vehicles At SOFIC (15.05.2013)

Quantum Stealth: The Invisible Military Becomes A Reality (13.12.2012)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

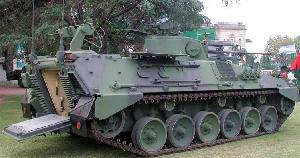

TAM VCTP

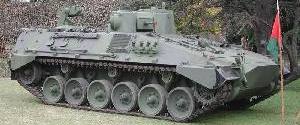

TAM VCTP

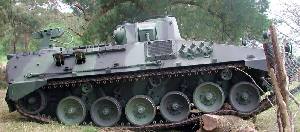

TAM VCTP

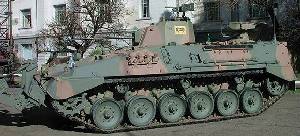

TAM VCTP
