Designation:

CENTAURO AMC

Info
Manufacturer: Iveco - Oto Melara Consortium - CIO
Product type: Armoured Vehicles
Name: Mortar vehicle

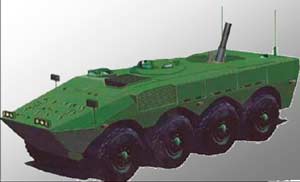

The Centauro Mortar Carrier shares the characteristics of mobility and versatility typical of the Centauro family.

The platform is fitted with a rifled semiautomatic 120 mm mortar, capable to use the same ammunitions ordinarily in service in Light Infantry Units to support the fire of the Medium Infantry.

The vehicular mounted version of this mortar offers many advantages in terms of firing range, mobility and operational speed (move, stop and fire) due to its semi-automatic loading system, electrically powered traverse and elevation and computer assisted ballistic. Backup manual operation are possible as well.

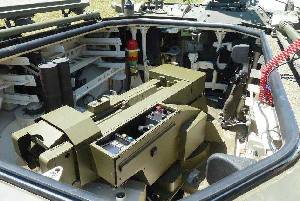

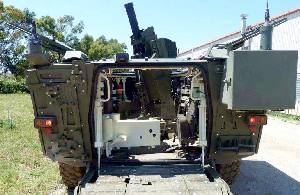

The weapon is mounted within the body of the hull. In operation, two electrically power-assisted hatches above the weapon open to permit weapon operation. This mortar fit means the AMC vehicle can be used to provide effective support to combat units as the vehicle with its on board weapon system can be deployed rapidly in complex security conditions.

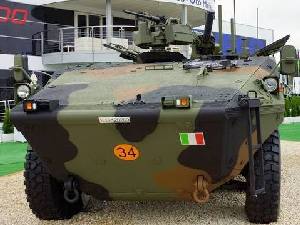

Close-in defence is provided by a remote controlled turret equipped with a small caliber weapon. The Command, Control and Communication system is installed, together with a SIF-SIR system (Command and Control System for Artillery systems), allowing a deep integration of this platform in the netcentric scenario.

•Crew = 1 + 4

•Main weapon system: Semi-automatic mortar 120 mm rifled bore

•Secondary armament : remote controlled HITROLE 12,7mm turret

•Smoke grenade launchers

•Laser warning system

•Same ammunition used in Infantry Units

Specifications:
Property Value
Main weapon caliber (mm)
120
Length (mm)
7990
Width (mm)
2900
Height (mm)
2990
Ground clearance (mm)
410
Wheelbase (mm)
2500
Crew
3
Troops
2
Weight (kg)
30000
Payload (kg)
8500
Max. road speed (km/h)
110
Gradient (%)
60
Side slope (%)
30
Max. road range (km)
800
Trench (mm)
2000
Fording depth (mm)
1500
Turning circle radius (mm)
9000
Engine power output (h.p.)
550
Number of forward gears
5
Number of reverse gears
2
Number of wheels
8
Number of drive wheels
8


Has folowing part:
Total Amount
2R2M/MO-120-RT (Mortar)
1
