Designation:

AACE/Kunduz

Info
Manufacturer: FNSS Defence Systems Inc
Product type: Armoured Vehicles
Name: Engineer vehicle

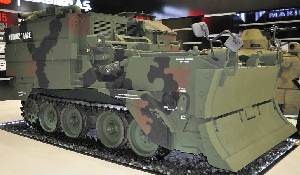

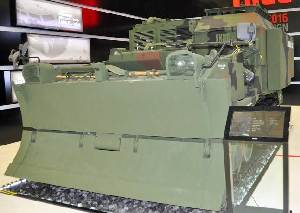

AACE is an amphibious, armored, tracked, combat earthmover to be used for preparation of the river banks in crossing over operations. It is capable of performing bulldozing, rough grading, excavating, hauling, and scraping operations. As compared to standard work machines, AACE has the capability to take in ballast from the soil ground to its ballast canister when necessary and discharge it at the end of the operation. In standard work machines, the dozer blade is swinging while the vehicle is stable however in AACE it is fixed to the vehicle. With its superior hydraulic suspension system, the front side of AACE can be lifted down or up and by this way its blade or ballast canister can touch and access the ground. As a result, more efficient shoveling and plowing can be performed. These activities can also be performed while the vehicle is mobile.

One of the most important features of AACE has is that it is amphibious and has the capacity for 2 crews. Besides, AACE has modern electronic systems like day and night cameras, multi-function LCD monitor and air-condition. The hull of AACE was designed as aluminium by taking into account its floating requirements and ballistic protection at the same time. Its hydraulic power and power transmission systems were equipped with modern equipment and tools and by this way the vehicle has higher maneuver capability and performance.

Specifications:
Property Value
Engine power output (h.p.)
400
Max. road speed (km/h)
45
Max. water speed (km/h)
8.6
Max. road range (km)
400
Gradient (%)
60
Side slope (%)
30
Vertical obstacle (mm)
400
Trench (mm)
1500
Weight (kg)
19500
Crew
2
Length (mm)
6200
Width (mm)
3300
Height (mm)
3200
Ground clearance (mm)
390



AACE/Kunduz quantities:
Country Qnt
TURKEY TURKEY
12
Qnt:
12
