Designation:

AMSTAF 8

Info
Manufacturer: Automotive Robotic Industry - ARI
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

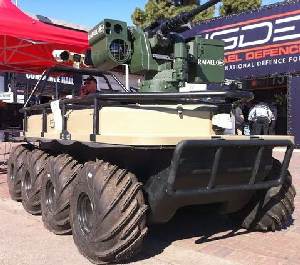

AMSTAF is a hybrid version of the ODG ARGO 8×8 all-terrain vehicle equipped with remote control. It differs from AMSTAF 6 with an increased number of wheels and carrying capacity.

AMSTAF 8 General Information

  • Autonomous and collaborative UGV, designed to perform security, safety and rescue missions

  • Always on guard, acts as Commander’s eyes on the scene and first responder

  • Multi-functional platform for a wide range of payload, based on the ODG “ARGO” 8X8 platforms

  • Multi-mission – Patrol, Observe, Scout, Track, Go to point, Respond, Pursue

  • Multi-task – Can carry riot control, weaponry, surveillances, fire-extinguishing, CBRN detection and containment systems and cargo

  • Multi-sensor Platforms – Positioning, Mapping, Path Planning, Obstacle detection and avoidance capabilities with operation safety

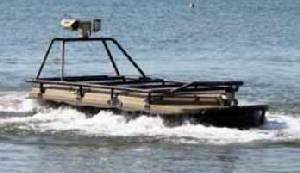

  • All Terrain and Amphibious – will cross swamps and snow

  • Operates in almost all weather conditions (-40°C to +40°C)

  • Speed up to 20Km/h on manually drive and 10-15Km/h on Autonomous missions

  • Climbing capability – maximum slope 45°

  • Up to 48 hours of continuous operation (combining battery and generartor)

  • Silent operation mode (Up to 6 hours continues)

  • Easy to control with a simple user interface

  • Economic and efficient with low maintenance

Standart Specifications

  • An ODG “ARGO” 8×8 chassis, Steel channel construction, Polyester powder coated for lasting protection

  • Body – Vacuum formed High Molecular Aerial Density Polyethylene

  • 2 Electric motors

  • Generator – optional diesel or petrol

  • Steering – Skid steered continuous torque to all axles

  • Laser Measurement System – 270˚/20m

  • High precision digital G.P.S system

  • 4 Day/Night vision Fixed wide angel Cameras – for 360˚ view

  • Day/Night vision Research Camera – (P.T.Z) with parallel (IR) led spotlight

  • Audio System – Microphone and loudspeaker

  • Safety – Remote controlled kill switch using separate communication system

  • 2 Spot-lights

Control station includes

  • Two x 22 inch touch screens

  • Operator control software with graphical user Interface

  • Tough-book laptop (for close control)

  • Gamepad remote control

  • UPS power unit for backup

  • Communication system includes

Base-station

  • mobile unit – R.F. 2.4 GHz, up to 13Km range (LOS)

  • Optional cellular system for back up

Specifications:
Property Value
Number of wheels
8
Number of drive wheels
8
Weight (kg)
1730
Payload (kg)
680
Height (mm)
850
Length (mm)
2900
Width (mm)
1600
Ground clearance (mm)
240
Fuel capacity (l)
54
Engine power output (h.p.)
23
Time of continuous operation (hours)
16


Has folowing part:
Total Amount
ADDER (Remote controlled weapon station)
1
