Designation:

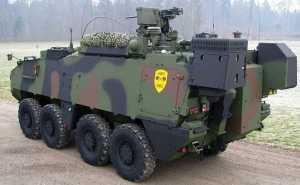

Piranha III CBRN

Info
Manufacturer: General Dynamics European Land Systems-Mowag GmbH
Product type: Armoured Vehicles
Name: Nuclear/biological/chemical reconnaissance vehicle

Highly mobile, quickly deployable, autonomous and well protected vehicle for the detection and analysis of Chemical, Biological, Radiological and Nuclear threats.

It monitors large areas, collects ground samples and marks contaminated zones. Equipped with all relevant alert systems, detectors and analyzing devices, it reliably discovers and identifies CBRN hazards. The spacious protected internal room provides an ergonomical working layout for the crew for autonomous CBRN reconnaissance missions. Protection: Modular, scaleable ballistic/mine/IED and RPG protection solutions in accordance with customer specific requirements. Armament (optional): KONSBERG remote weapon station, 12.7 mm machine gun M2HB, day and night vision capability, stabilized fire control, laser range finder, target tracking.

Specifications:
Property Value
Number of wheels
8
Number of drive wheels
8
Crew
5
Length (mm)
7240
Width (mm)
2660
Height to hull top (mm)
2700
Weight (kg)
22000
Payload (kg)
5500
Weight for transportation (kg)
16500
Max. road speed (km/h)
100
Gradient (%)
60
Side slope (%)
40
Fording depth (mm)
1400
Trench (mm)
2000
Turning circle radius (mm)
18500
Max. road range (km)
640
Engine power output (h.p.)
400


Has folowing part:
Total Amount
C-9 (Diesel engine)
1
M 153 Protector CROWS II (Remote controlled weapon station)
1
