Autoloader

Category: Term of the day

Autoloader (also called automatic loader) is a mechanical system to load the main armament and so eliminate one member (human loader) from the fighting vehicle's crew.

There are two main types of autoloader, the bustle and the carousel.

In the bustle autoloader, the rounds are stowed in tubes on an endless belt within the autoloader. A microprocessor is used to recognise various types of ammunition.

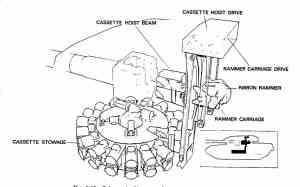

In the carousel autoloader, the rounds are stowed in a circular, rotating structure on the turret floor. Ammunition is two-piece, the projectile and charge are stowed one above the other, each complete round called a cassette. Another version – the projectile and charge are positioned at an angle of 90 degrees to each other in a foldable loading tray, the projectile being placed horizontally, and the charge, vertically. As in the bustle autoloader, a microprocessor is used to recognise various types of ammunition.

The first tank autoloader was used in the Soviet-designed T-64 main battle tank (MBT). Nowadays, the most modern tanks fitted with an autoloader include French Leclerc, Japanese Type 90, Ukrainian Yatagan MBTs (bustle autoloader) as well as Russian T-90S, Chinese Type 98, Ukrainian T-84 MBTs (carousel autoloader).

Some Western nations have developed prototype autoloaders for their future tanks with larger calibre guns, as, for example, did Germany for its 140mm-armed Leopard MBT.

Sergyi Way
25.07.2006

www.army-guide.com

Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

Problems of Russian Vacuum APFSDS-T projectile
25.01.2019

Otokar debuts its Light Tank in Paris
19.06.2018

Nexter and Texelis win the lightweight VBMR contract
13.02.2018

Bumar Labedy represents the PT-17 MBT on the MSPO 2017
07.09.2017

Type 90 (Main battle tank)

Leclerc (Main battle tank)

Type 90II (Main battle tank)

Type 90 (Infantry fighting vehicle)

Type 90 (Main battle tank)

Leclerc (Repair and recovery vehicle)

MBT 2000/Type 90II/VT1 (Main battle tank)

Yatagan (Main battle tank)

Type 90 (Multiple rocket launcher)

Leclerc EPG (Engineer vehicle)

Leclerc AZUR (Modernization of the vehicle)

Type 90 (Repair and recovery vehicle)

Leclerc PTG (Engineer vehicle)

Type 90 (Anti-aircraft system)

Leclerc DCL (Repair and recovery vehicle)

Leclerc Renove/R/XLR (Modernization of the vehicle)

Discuss

Records 1 to 8 of 8


Post
Misima
15:11 26.07.2006

If all the countries introduce autoloaders in their fighting vehicles and eliminate human loaders, this will increase unemployment rate :)

Fabian
18:24 01.08.2006

In this case I wonder why the Chinese use autoloader in their tank. Shortage of manpower is not of course a consideration.

Azam
10:38 02.08.2006

Bustle autoloders are better because in case of explosion crew do not suffer (hopefully). If carousel autoloder blows up, the whole tank and the crew are dead.

Ayed
09:30 03.08.2006

Bustle autoloders are better because in case of explosion crew do not suffer (hopefully).

This will occur only if the gun is not being loaded at the moment of hit by enemy projectile. So this autoloader may dangerous as well.

Alfred
14:28 03.08.2006

Bustle auto-loaders are good for fixed ammunition, and carousel autoloaders, for two-piece ammunition.

Misima
16:31 04.08.2006

Automatic loader seems to make the tank much more complicated and prone to failure, aside from additional logistic burden. Hoewver I anticipate that in futire all the tanks will be fitted with automatic loaders.

Misima
16:31 04.08.2006

Automatic loader seems to make the tank much more complicated and prone to failure, aside from additional logistic burden. Hoewver I anticipate that in futire all the tanks will be fitted with automatic loaders.

Alfred
14:51 07.08.2006

Yes, they will be, especially if the tanks are fitted with a larger caliber guns.
