Designation:

1PN96

Info
Manufacturer: Vologda Optical-And-Mechanical Plant VOMZ JSC
Product type: Sighting Systems

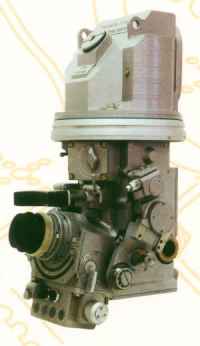

Name: Night gunner's sight

Specifications:
Property Value
Magnification ratio
6.1
Horizontal field of view (degrees)
7.5
Vertical field of view (degrees)
7.5
Target detection range by the gunner at night (m)
700
APFSDS effective sighting range (m)
1500
Elevation (degree)
20
Depression (degree)
-10
Input voltage (V DC)
27
Power requirement (W)
55
Weight (kg)
23
Length (mm)
300
Weight (kg)
219
Height (mm)
497

Included in:
Product Amount
BTR-80 (GAZ 5903) (Wheeled armoured personnel carrier)
1
MT-LB (Tracked armoured personnel carrier)
1
