Designation:

MUM

Info
Manufacturer: OPTICOELECTRON GROUP
Product type: Sighting Systems
Name: Sight

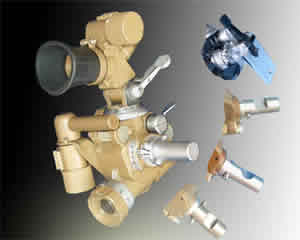

UNIFIED MORTAR SIGHT

It is used with 60 mm, 81 mm, 107 mm and 120 mm mortars for aiming at directly observable and hidden targets when using firing tablets with division value of 1/6400.

For firing during the night is incorporated an illuminating system no requiring supply.

The sight can be used also for 82 mm and 120 mm mortars with scale division value 1/6000 and different types of interface including "dove tail"

Specifications:
Property Value
Magnification ratio
5
Vertical field of view (degrees)
9
Horizontal field of view (degrees)
9
Weight (kg)
1
Length (mm)
100
Width (mm)
108
Height (mm)
190
