Designation:

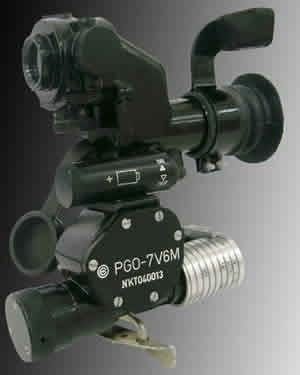

PGO-7V6M

Info
Manufacturer: OPTICOELECTRON GROUP
Product type: Sighting Systems
Name: Sight

Grenade - launcher optical sight.

PGO-7V6M is designed for fire with hand held antitank grenade-launcher RPG-7 and its modifications.

PGO-7V6M provides accurate fire with grenades PG-7V, PG-7VL, PG-7VLT, PG-7VR with the help of the optical scale marks as well as with grenades KO-7V, OFG-7V, OG-7V (OG-7VM), OG-7VE with the help of graduated drum mechanical scale.

There are marks on the optical scale for deflection corrections on the left and on the right up to 0-50 with step 0-10.

The long range scale allows to be determined distances to targets at base 2.7 meters.

Specifications:
Property Value
Magnification ratio
2.7
Vertical field of view (degrees)
13
Horizontal field of view (degrees)
13
Length (mm)
140
Height (mm)
180
Width (mm)
75
Weight (kg)
1.1
