Designation:

Kasman

Info
Manufacturer: I.M.I. Israel Military Industries Ltd
Product type: Ballistic Protection
Name: Modernization of protection

As a direct result of the current Al Aqsa Intifadah, the IDF developed some vehicles for use in urban areas for crowd control, urban warfare and counter insurgency roles. One of these vehicles is the Nagmash Kasman or Kasman for short. Nagmash being the acronym for Noseh Guysot Meshoryan - Armored Personnel Carrier and Kasman being the acronym for Kesem a Mangina meaning as much as The Charm Of Music.

Description

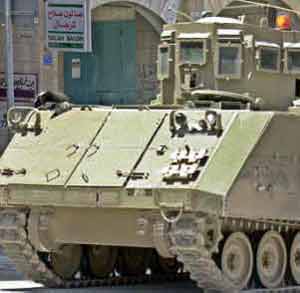

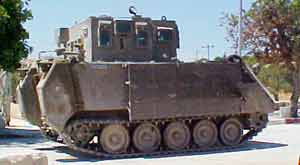

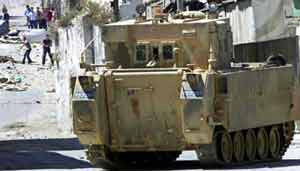

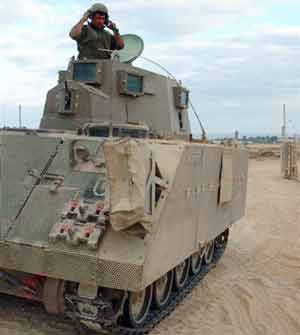

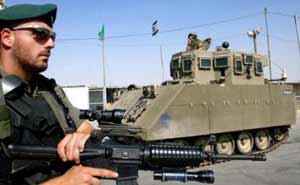

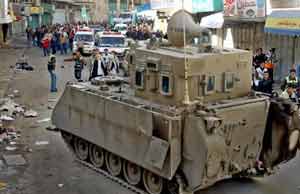

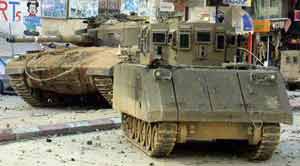

The Kasman is a Zelda (M113) equipped with an all new fixed superstructure, spanning both roof hatches of the Zelda. The superstructure is lavishly equipped with vision blocks made of armoured glass as well as six firing slots, one up front, one in the rear and two on each side. The firing slots are capable of taking up an FN MAG 7,62 mm machine gun.

The two vision blocks and the firing slot in the rear of the superstructure are placed in a hatch which can be opened downward. Two searchlights are placed on the superstructure's roof and can be operated from within the vehicle. Another option is the placement of a megaphone on top of the superstructure for psychological warfare.

The internal fuel tank has been removed and replaced by two external fuel tanks on the rear of the vehicle. This is to serve crew safety.

Variants

Recently, an improved version of the Kasman has appeared. This vehicle has a shallower superstructure with angled sides and protrusions for the firing slots. Furthermore, the number of vision blocks is reduced and the dimensions of the superstructure have been considerably reduced as well. The vehicle, of which the exact designation is unknown at the moment, is equipped with IS-10 grenade discharges with CL-3030 smoke grenades.
