Designation:

S5

Info
Manufacturer: Shinjeong Development Co.
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

Multi-role Armoured Wheeled Vehicle 4x4

Description

The S series are a multi-purpose vehicle that cab be used for tasks of internal security, for riot control, reconnaissance, escort and as a mobile platform for defense systems.

The extremely good range of vision offered by large bullet-proof windows ensures that the vehicle can be easily driven even in normal road traffic.

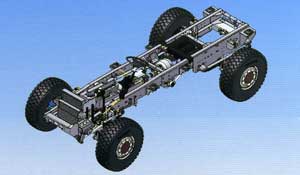

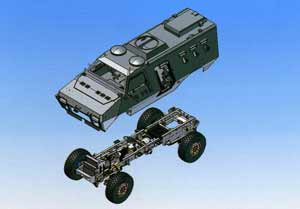

The all-wheel driven chassis made by Shinjeong puts the S series in the "high mobility" vehicle chassis. Consequently it has the highest level of cross-country performance and completely fulfills the specified requirements for this category, such as high.

Service and maintenance are completely trouble-free and do not require any special equipment other than that used in a Shinjeong service station is at your disposal for support and for the supply of spare parts.

Benefits

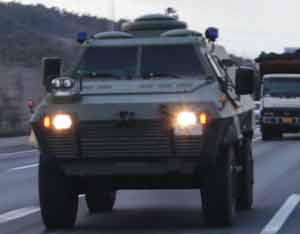

  • High speed on roads

  • Excellent cross-country performance

  • Large operational range

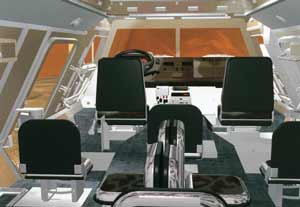

  • Spacious interior for a crew of up to 12 persons

  • All round armored protection

  • Observation and fighting in any direction

  • Simple system with high reliability

  • Easy operation and maintenance

Protection

  • Hull

Welded superstructure made of hardened armour steel

  • Glass

The ballistic protection is comparable to the steel armour

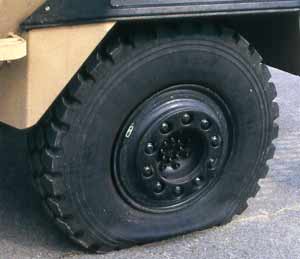

  • Run-flat Tire

loss of tire pressure the vehicle can be driven speedof60-70km/h

Mobility

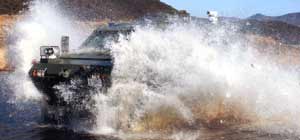

  • Excellent cross-country capability with large ground clearance

  • Suitability for use off roads and in cities

  • Spacious interior compartment and transport capacity for a crew of up to 12

  • Large operational range

  • All-wheel drive (4 x 4) and differential lock

Modularity

  • Mobile platform for various optional equipment

  • Fulfill the tactical requirements special attention

  • Uncomplicated construction, high reliability

Logistics

  • Missions to maintain internal security

  • Rescue mission (accidents, hostages)

  • Deployment in case of emergency and natural disasters

  • Anti-terrorist missions

Versatile talents

In designing this vehicle, the experience and know-how gained in numerous and versatile applications of the vehicles which preceded the S-5 were integrated into the new model.

Option

1. Air conditioning system

2. Public speaker system

3. Beacon light

4. Communication radio

5. CCTV system

6. Search light

7. Hydraulic operated steel cover

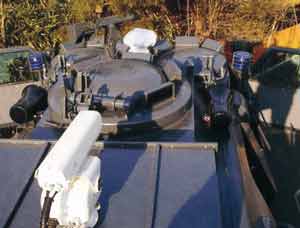

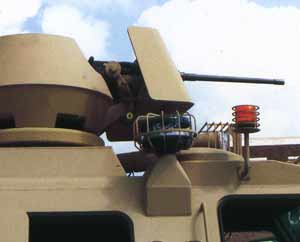

8. Cupola or Turret

Supplementary

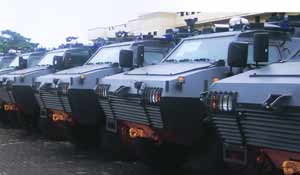

S5 will be fitted with slat armor to protect against RPGs.

The vehicles are designed to carry with added supplementary equipment.

Specifications:
Property Value
Length (mm)
6260
Width (mm)
2475
Length (mm)
2410
Weight (kg)
10400
Max. road speed (km/h)
105

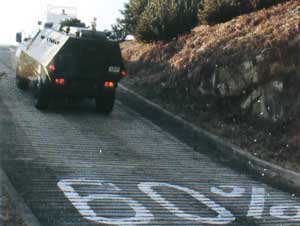

Gradient (%)
60

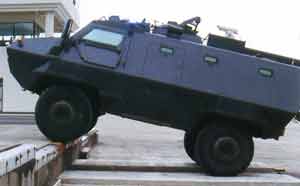

Side slope (%)
30
Engine power output (h.p.)
225
Maximum torque (Nm)
637
