Designation:

Piranha IIIC

Info
Manufacturer: General Dynamics European Land Systems-Mowag GmbH
Product type: Armoured Vehicles
Name: Reconnaissance Vehicle

Driveline and Suspension

Transfer case:

  • single speed gear

Axles:

  • front axle drives disengageable

Wheels and tires:

  • 12.00 R 20 , with central tire inflation system (CTIS), run-flat cores

Suspension:

  • independent for each wheel; front: coil springs and control arms rear: torsion bars

Shock absorbers:

  • hydraulic, on all wheels

Brakes:

  • dual circuit air actuated ABS 6S/C brake system

Ballistic Protection

  • electrically welded high hardness armour steel plates with provisions for add-on armour and mine protection kits

Baseline Ballistic protection:

  • against light and heavy machine gun fire and artillery shell splinters

Optional:

  • Add-on armour kits

  • Mine protection kit

  • Seawater cooling system

  • Closable louvres of engine grills

  • Water propulsion: 2 propellers

  • Steering control of twin rudders

  • Automatically operated trim vane

  • Bilge pumps

Type of turret:

  • Otomelara Hitfist 2-man, stabilized turret for fire on the move

Weapon (primary):

  • 25 mm or 30 mm chain gun with

  • thermal imaging sight

Weapon (secondary):

  • 7.62 mm co-axial machine gun

Weapon (ancillary):

  • 8x76 mm smoke and fragmentation grenade launchers

  • Gun/turret drive system: Azimuth: 360° continuous, >57°/sec. Elevation: -7° to +58°, >29°/sec, <0.5 mil/sec.

Equipment

  • Combined NBC/Air conditioning system

  • Fire extinguishing system for engine compartment

  • Further equipment available

Specifications:
Property Value
Weight (kg)
22000
Weight for transportation (kg)
18500
Engine power output (h.p.)
400
Power-to-weight ratio (h.p./t)
21.7
Length (mm)
7580
Width (mm)
2170
Height (mm)
2660
Ground clearance (mm)
555
Crew
3
Troops
7
Max. road speed (km/h)
100
Max. water speed (km/h)
10
Gradient (%)
60
Side slope (%)
30
Fording depth (mm)
1500
Trench (mm)
2000
Turning circle radius (mm)
18000
Max. road range (km)
750
Maximum torque (Nm)
1600
Number of forward gears
7
Number of reverse gears
1


Has folowing part:
Total Amount
7HP600 (Transmission)
1
C-9 (Diesel engine)
1


Related Articles

CONTRACT TO DELIVER REMOTE WEAPONS STATIONS TO DENMARK WORTH 270 MNOK (11.12.2019)

DALO Contracts Systematic To Enhance Artillery System Combat Effectiveness (17.07.2018)

The Transatlantic Partner for Land Defense in Europe - General Dynamics European Land Systems premiers four new offerings at EUROSATORY 2018 (08.06.2018)

General Dynamics European Land Systems presents a new variant of PIRANHA IFV at the HEMUS Exhibition 2018 (04.06.2018)

General Dynamics Land Systems–UK Showcases EAGLE Platform Ahead of MRV-P Programme Trials (14.09.2017)

General Dynamics Land Systems–UK showcases PIRANHA 5 at DSEI (14.09.2017)

General Dynamics European Land Systems handover the first PIRANHA Wheeled Armoured Vehicle to Denmark (19.05.2017)

General Dynamics European Land Systems demonstrates the PIRANHA 8X8 Wheeled Armoured Vehicle to the Bulgarian Army (09.05.2017)

General Dynamics European Land Systems to Deliver Additional PIRANHA III Wheeled Armored Vehicles to Romanian Army (30.01.2017)

General Dynamics European Land Systems Awarded a Framework Contract to Service the Danish Army´s Fleet of Wheeled Armored Vehicles (09.01.2016)

KONGSBERG to deliver PROTECTOR RWS to the Irish Defence Forces (11.01.2014)

GDELS signs a teaming agreement with Falck Schmidt Defence Systems for Danish APC-R Program (25.02.2013)

General Dynamics European Land Systems presents the new EAGLE 6X6 at EUROSATORY 2012 (24.05.2012)

General Dynamics Awarded 70 Additional DURO Armoured Personnel Carriers for the Swiss Army (30.11.2011)

General Dynamics Proposes PIRANHA 5 for the Close Combat Vehicle Program (30.08.2011)


Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

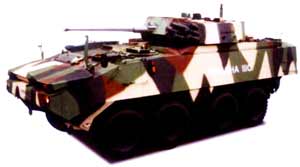

Piranha IIIC

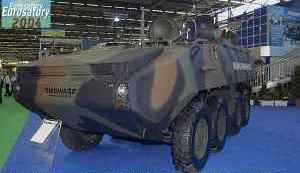

Piranha IIIC

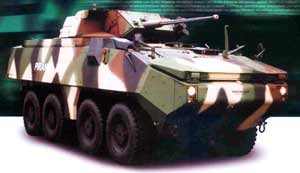

Piranha IIIC
