Designation:

SPM-3 Medved

Info
Manufacturer: Military Industrial Company LLC - VPK
Product type: Auxiliary Vehicles
Name: Mine protected carrier

The SPM-3 is a Russian mine resistant ambush protected vehicle, developed specially for internal security forces. This MRAP vehicle will be evaluated by the Russian Ministry of Internal Affairs for possible acceptance to service in 2010.

The SPM-3 provides all-round protection against 7.62-mm armor-piercing rounds. Vehicle has a V-shaped hull and can withstand 6 kg mine blast under any wheel. Vehicle is also fitted with NBC protection and automatic fire suppression systems.

The SPM-3 MRAP can be armed with remotely controlled 12.7-mm or 14.5-mm machine gun.

This mine resistant ambush protected vehicle has a crew of two and can carry 8 troops.

The SPM-3 uses a number of proven automotive components, such as suspension and drive train of the BTR-90 APC, transmission and engine from the Ural-4320. The SPM-3 is powered by a YaMZ-7601 diesel engine.

Variants

  • Troop carrier

  • Internal security vehicle

  • Command vehicle

  • Ambulance

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Engine power output (h.p.)
330
Crew
2
Troops
8
Length (mm)
5900
Width (mm)
2500
Height (mm)
2600
Weight (kg)
12000
Ground clearance (mm)
500
Max. road range (km)
1400





Share...
Printable Version Send by email rss favorite Facebook Vkontakte Twitter Google+

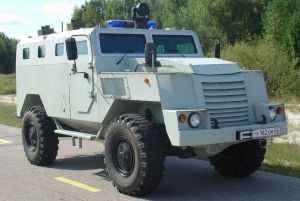

SPM-3 Medved

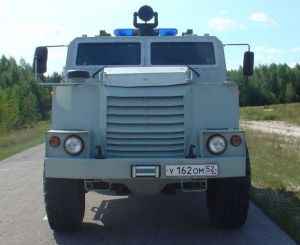

SPM-3 Medved

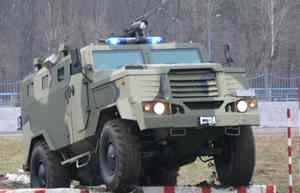

SPM-3 Medved

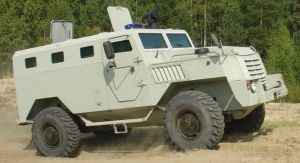

SPM-3 Medved

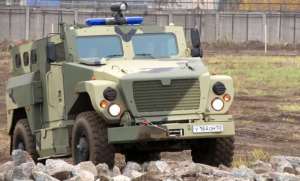

SPM-3 Medved
