Designation:

CaMEL

Info
Manufacturer: Northrop Grumman
Product type: Auxiliary Vehicles
Name: Robot, Unmanned Vehicle

CaMEL - Carry-all Mechanized Equipment Landrover

Like its namesake, Northrop Grumman’s CaMEL operates in the most desolate corners of our planet. Today’s warfghters often fnd themselves deep in unforgiving terrain, miles from their support base, burdened with the extreme weight of equipment they need to live and fght. Rapid movement is a challenge -requiring time and resources they just don’t have.

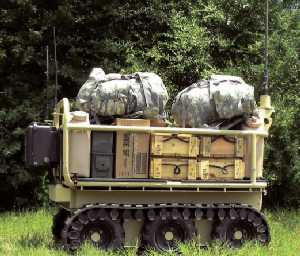

CaMEL is a robotic transport platform providing users an unparalleled and vital equipment transport capability. CaMEL is a hybrid motorised robot that can carry a half a ton of cargo across nearly any terrain. Optional kits are available to ft your mission requirements making CaMEL your reliable customised beast of burden.

The robot can be used not only as armed unit, but also as the car for transportation of cargoes; name CaMEL testifies to it even, it is deciphered as Carry-all Mechanized Equipment Landrover. Such fifty cars it has already been put to Israel. And as arms it is possible to use almost any unit, including facilitated machine gun M249, grenade cup discharge MK19 or a 30-millimetric gun. Thus management of the weapon is carried out by the operator by means of the electronic device with the touch display.

Features

  • Height: 0.635m to deck; 1.194m to the top of the cage

  • Width: 0.813m

  • Length: 1.524m

  • Ground Clearance: 0.152m

  • Payload: 350kg +

  • System electronics are sealed within weather-resistant enclosure

  • All terrain (wet or dry surfaces)

  • Primary Fuel within Camel chassis: 13.24l

  • Because it is a Hybrid robot, the engine run time is approximately 1/3 of the robot operating time.

Mobility Specs

  • Method: 6-wheel drive with individual drive motors, Removable tracks

  • Maximum slope angles: 40% grade front to back; 20% grade side to side

  • Speed: 1-8km/h

  • Crevice/gap traverse: crosses gaps up to 0.483m

  • Turning: Within the length of the vehicle

Electrical Specs

  • 7 Isolated firing circuits: 24V DC

  • Power Supply: Diesel engine hybrid; 24V DC Battery Pack

  • System battery can be charged via NATO slave adapter off of any military vehicle in under two hours

  • 1/4 Turn Connectors: For easy connect, disconnect

Optional Kits

  • Extended range external fuel cell

  • Battery charging kits for military/commercial battery recharging

  • Wheeled or tracked variants

  • Data Links: Interchangeable Fiber Optic Cable Reel,

  • RF system, or Hard-line cable reel system

  • Control kits - Modes of control

– Light Detection and Ranging (LDAR)

– Voice command

– Autonomous operations

– Tethered control

– Wireless (remote)

– Follow-me

Training

  • 2.5 days of operator/maintenance – at our training facility in Oak Ridge, TN

– your facility

– forward deployed

Specifications:
Property Value
Height (mm)
1194
Height to hull top (mm)
635
Width (mm)
813
Length (mm)
1524
Ground clearance (mm)
152
Payload (kg)
350
Max. road speed (km/h)
8



CaMEL quantities:
Country Qnt
ISRAEL ISRAEL
60
Qnt:
60
