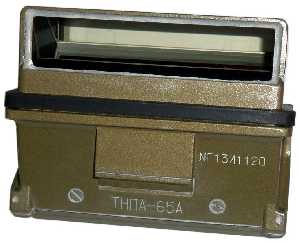

Designation:

TNPA-65A

Info
Manufacturer: Izyum Instrument Making Plant
Product type: Vision Devices
Name: Commander's vision device

TNPA-65A is a terrain surveillance device. Armored vehicles configuration.

  • Angle of the field of view in the horizontal plane: not less than 140 degrees

  • Angle of the field of view in the vertical plane: not less than 35 degrees

  • Upper angle of the field of view in the vertical plane: not less than 16 degrees

  • Bottom angle of the field of view in the vertical plane: not less than 17 degrees

  • Angle of the field of vision in the horizontal plane: not less than 52 degrees

  • Angle of the field of vision in the vertical plane: not less than 6 degrees

  • Angle of the binocular field of vision in the horizontal plane: not less than 10 degrees

  • Angular deviation of the axis beam: not less than 45±2 degrees

  • Periscope line-of-sight height: 65±4 mm

  • Visual transmittance factor: not less than 0.6

  • Overall dimensions: not more than 118×56×92 mm

  • Weight: not more than 0.74 kg

  • Operating conditions: from -50 to +50 °Ñ
