Designation:

Atom

Info
Manufacturer: OAO Central Research Institute BUREVESTNIK
Product type: Armoured Vehicles
Name: Wheeled armoured personnel carrier

The ATOM is a heavy wheeled infantry fighting vehicle (IFV) jointly developed by JSC Central Research Institute Burevestnik (a division of Uralvagonzavod) of Russia and Renault Trucks Defense (RTD) of France.

Prototype of this IFV was dispalyed KADEX-2014 (Kazakhstan) international exhibition in May 2014 and IDEX-2015 (UAE) in Fabruary 2015.

COMBINED EXPERTISE

New family of 8x8 armored vehicles designed with a proven high mobility driveline from Renault Trucks defense and Uralvagonzavod’s expertise in armor and weapon systems.

The best solution for new medium forces:

  • Modular design, sufficient payload and open electronic architecture to accommodate various mission and weapon systems with a growth potential

  • High tactical and strategic mobility

  • Excellent survivability on any battlefield

Main specifications

  • Engine: Renault 6 cylinders (diesel)

  • Max power: ≥ 600 hp

  • Max torque: ≥ 2400 nm @ 1050-1700 rpm

  • Gearbox: Automatic

  • Suspensions: Independent

  • Protection: Ballistic protection up to level 5 STANAG 4569

  • Mine & IED protection kits

  • CBRN protection

MAIN VARIANTS

  • Infantry Combat Vehicle (ICV)

  • Armored Personnel Carrier (APC)

  • Command Post (CP)

  • Light Tank

  • Self-Propelled Howitzer (SPH)

  • Scout

  • Engineer

  • Ambulance

  • Security

Variants

  • Crew: 3+7 (Main weapon: 57 mm turret)

  • Crew: 2+10 (Main weapon: 12.7 mm remote controlled weapon system)

  • Crew: 3 (Main weapon: 120 mm turret)

  • Crew: 2+4 (Main weapon: 12.7 mm remote controlled weapon system)

  • Crew: 2 (Main weapon: 152 mm howitzer)

  • Crew: 2+10 (Main weapon: 12.7 mm remote controlled weapon system)

HIGH MOBILITY

HIGH MOBILITY DRIVELINE:

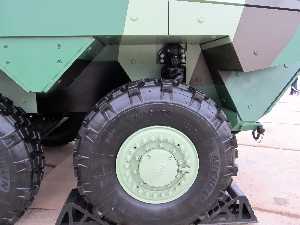

  • 8x8 with independent suspensions

  • powerfull Renault engine

  • automatic gearbox

  • airtransport by 11-76 and An-124

  • optional amphibious kit

TOTAL SURVIVABILITY

  • State of the art protection against balistic threats up to NATO level 4 (stanag 4569)

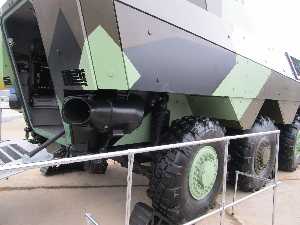

  • Monocoque armored steel hull with modular and evolutive add-on armor systems

  • Options: run-flat, slat armor against rPGs, active protection system (APs), smoke grenade launchers, laser/radar warning systems

  • Mine and IED protection (kits)

  • CBN protection (option)

PAYLOAD & FIREPOWER

Sufficient payload and internal volume for any mission or weapon system without compromising mobility and protection.

Fitted for a large range of weapon systems:

  • small caliber remotely-operated weapon system

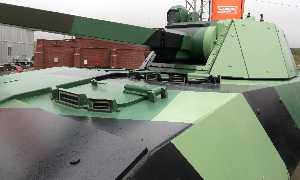

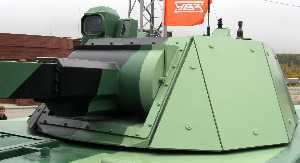

  • 57 mm turret

  • 120 mm gun

  • 120 mm mortar

  • 152 mm howitzer

  • Missiles launchers (anti-tank, anti-aircraft…)

Growth potential for future upgrades.

Specifications:
Property Value
Number of wheels
8
Number of drive wheels
8
Weight (kg)
32
Power-to-weight ratio (h.p./t)
18.7
Length (mm)
8200
Width (mm)
3000
Height (mm)
2500
Ground clearance (mm)
600
Crew
2
Troops
8
Engine power output (h.p.)
600
Maximum torque (Nm)
2400
Trench (mm)
2000
Vertical obstacle (mm)
700
Fording depth (mm)
1500
Gradient (%)
60
Max. road speed (km/h)
100
Max. road range (km)
750
Side slope (%)
30
