Designation:

BPU-12.7

Info
Manufacturer: Kharkiv Morozov Machine Building Design Bureau - KMDB
Product type: Turrets
Name: Remote controlled weapon station

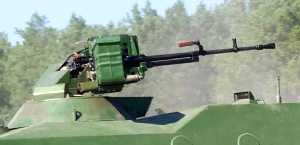

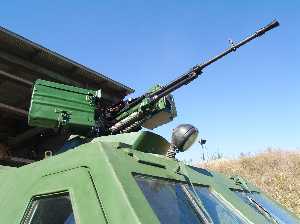

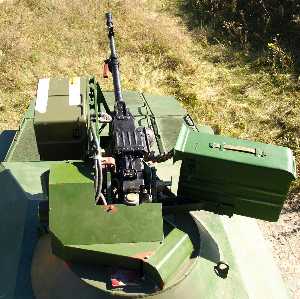

Turret machine gun mount is fixed on light armored vehicles and designed to engage light armored vehicles and aerial targets (helicopter) at the distances up to 2000 m in day and night conditions.

BPU-12.7 is autonomous, closed, non-stabilized, remote controlled from the operator's station.

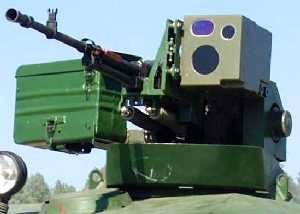

Fire control system composition:

  • colored video camera

  • thermal imaging camera

  • laser range-finder

Specifications:

  • Guidance drives: Electromechanic, without manual backup

  • Guidance in elevation and azimuth: 0.1...6 deg/s

  • Quick transfer speed in elevation and azimuth: 35 deg/s, minimum

  • Lock in elevation and in azimuth: Mechanical

  • Method of signal transfer from chassis: Collector ring

  • Sight type: TV with thermal imager and range finder

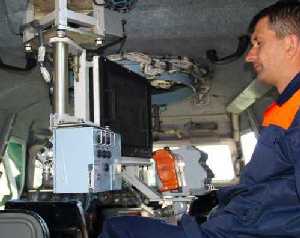

  • Operator's station: Monitor control panel (joystick)

  • Colored video camera has two fields of view - wide and narrow

  • Spectral operative range of thermal imaging camera: 8...12 micron

  • Laser range-finder wave length: 1.06 micron

  • Target of tank type acquisition range by colored video camera: 2 500 m min in wide FOV and 5 000 m min in narrow FOV

  • Target of tank type recognition distance by colored video camera: 1 500 m min in wide FOV and 3 000 m min in narrow FOV

  • Angle of view of colored video camera in narrow FOV: 1.8°±10% min in azimuth and 1.37°±10% min in elevation

  • Angle of view of colored video camera in wide FOV: 6.8°±10% min in azimuth and 5°±10% min in elevation

  • Target of tank type acquisition range at the object thermal contrast not less than 2°C by thermal imaging camera: 3 500 m min

  • Target of tank type recognition range at the object thermal contrast not less than 2°C by thermal imaging camera: 1 500 m min

  • Thermal imaging camera angle of view: 6.2°±10% min in azimuth and 5°±10% min in elevation

  • Target of tank type rangefinding: 160...5 000 m min


Specifications:
Property Value
Main weapon caliber (mm)
12.7
Ammunition of the main gun
150
Elevation (degree)
60
Depression (degree)
-5
Traverse arc (degree)
360
Length (mm)
2024
Width (mm)
1139
Height (mm)
749
Weight (kg)
350

Included in:
Product Amount

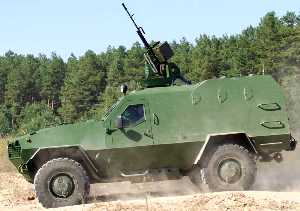

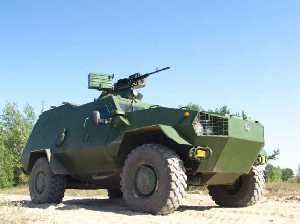

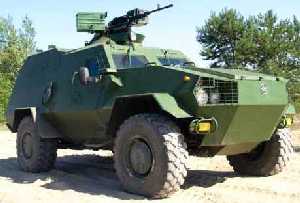

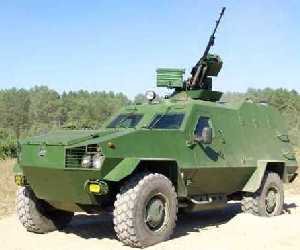

Dozor-B (Wheeled armoured personnel carrier)
1
