Designation:

A-85-3A

Info
Manufacturer: Chelyabinsk Tractor Plant - Uraltrań Ltd
Product type: Engine and Systems
Name: Diesel engine

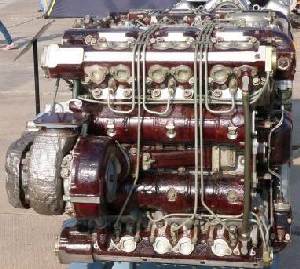

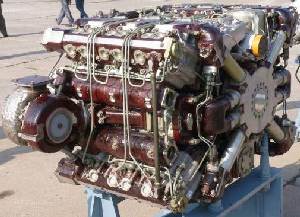

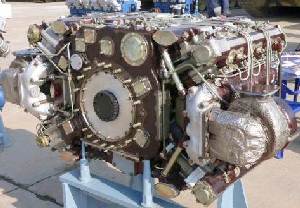

A-85-3A is turbo-piston diesel engine (sometimes named 2A12-3, 12CHN15/16 or 12N360) for front- and rear-positioned engine compartment. A-85-3A engine is used on an Armata universal platform.

The development of the engine was engaged in Chelyabinsk Transdizel design bureau. It produced on Chelyabinsk tractor plant.

A-85-3A (12N360) Engine Specifications:

  • Engine Type: four X - shaped, 12 - cylinder with a turbocharged and intercooled air

  • The system of fuel mixing: direct fuel injection

Specifications:
Property Value
Engine power output (h.p.)
1500
Rated speed (r.p.m.)
2000
Fuel consuption (g/h.p.h)
160
Weight (kg)
1550
Length (mm)
813
Width (mm)
1300
Height (mm)
820

Included in:
Product Amount
T-14 Armata (Main battle tank)
1
T-15 Armata (Infantry fighting vehicle)
1
