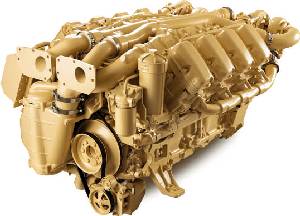

Designation:

DI16 883kW

 Info
Manufacturer: SCANIA
Product type: Engine and Systems
Name: Diesel engine

  • Configuration and number of cylinders: 90° V8

  • Working principle: 4-stroke

  • Bore x stroke: 130 x 154 mm

  • Displacement : 16.4 dm3

  • Compression ratio: 15.7:1 – 16.7:1

  • Firing order: 1 – 5 – 4 – 2 – 6 – 3 – 7 – 8

  • Nominal speed: 2,200 rpm

  • Pistons material: Steel

  • Camshaft material: High position alloy steel

  • Connection rods material: I-section press forgings of alloy steel

  • Crankshaft material: Alloy steel with hardened and polished bearing surfaces

  • Rotation, seen from flywheel end: Counter clockwise

  • Weight approx. (dry): 1,340 kg

LUBRICATION SYSTEM

  • Oil capacity (dry sump with separate oil tank): 40 – 48 dm3

  • Oil consumption: <0.3 g/kWh

  • Oil filter: Paper/Full flow

  • Oil cooler, integrated inside engine block: Water cooled

INJECTION SYSTEM

  • DI16 (883 kW): Extra high pressure, XPI (1,200 hp)

  • DI16 (736 kW): Unit injectors, PDE (1,000 hp)

  • Fuel acc. STANAG 4362: F63, F54, F34

INTAKE SYSTEM

  • Charge air cooling system: Dual circuit

EXHAUST SYSTEM

  • Smoke generator

ELECTRICAL SYSTEM

  • Governor: Scania Engine Management System, EMS

  • CAN bus

Specifications:
Property Value
Engine power output (h.p.)
1200
Weight (kg)
1340

Included in:
Product Amount
350S (Power pack)
1
