Designation:

RIwP

Info
Manufacturer: Moog Inc.
Product type: Turrets
Name: Weapon station

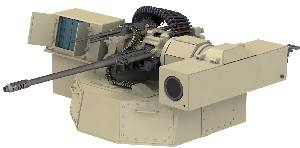

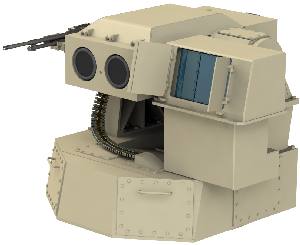

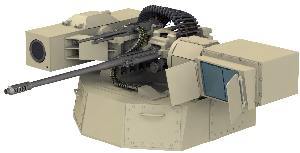

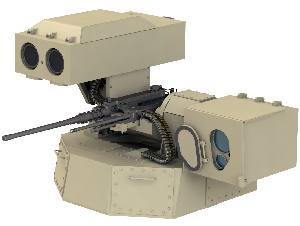

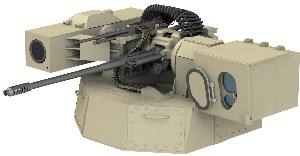

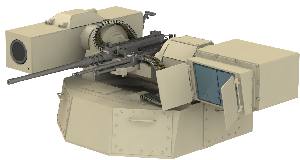

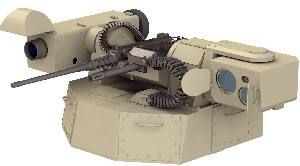

The Moog Reconfigurable Integrated-weapons Platform (RIwP) provides a system that is readily adapted to the ever changing mission scenarios encountered by the modern warfighter. This next generation remote turret offers overmatch capabilities in Land, Sea, and Air battle environments. A wide array of U.S. missiles and non-lethal effects can be combined with direct fire weapons ranging from small to medium caliber, to provide the most effective combination of arms for any combat situation.

The dual axis stabilized weapon platform is directed by either a single or dual axis independently stabilized sight system to maximize first round hit probability and reduce target engagement times while stationary or on the move. The weapon systems are reloadable under-armor, thereby combining maximum crew protection with continuous fire capability. Sights and missiles are available in armored configurations.

Networked fire-control ready configuration provides “slew-to-cue” and “rate-aiding” capability which enhances the land tactical commander’s ability to execute complex, dispersed and high tempo operations at reduced risk. In addition, the advanced Fire Control System allows impact of multiple weapon munitions simultaneously, optimizing the element of surprise.

  • Unmatched Sensor and Pointing Technology Ensure the User Sees First, Engages First and Achieves Mission Success

  • Lightweight – Supports both Tactical and Fighting Vehicles

  • Rapid Under Armor Reloading of all Direct Fire Weapons

  • Simplify Training and Operation - Common Platform and User Interface Across all Weapon Variants

  • Universal Missile Platform has Capability to Fire a Multitude of Existing U.S. Ground Platform Missiles and Offers Capacity for Future Technologies

  • Enhanced 360 Situational Awareness Improves Survivability and Mission Capability by Providing Users with Enhanced Coverage

  • Advanced Fire Control System Allows Impact of Multiple Weapon Munitions Simultaneously, Optimizing the Element of Surprise

Moog provides integrated turret design for Missile Launch Pedestals. Hardware content includes:

  • Primary Stabilized Control Structure and All Related

  • Line Replacement Units (LRUs

  • Turret Control Display Assemblies (TCDA)

  • Electronic Control Units

  • Power Distribution Units

  • Battle Override Assemblies

  • TOW Interface Unit

  • Slip Rings

  • System Cables

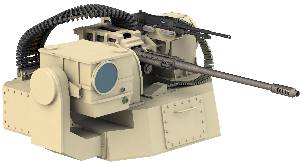

Primary Armament(s)

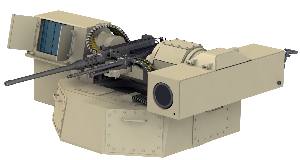

  • M2 (12.7mm) with MK19 (40mm AGL)

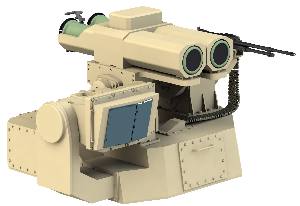

  • Dual TOW Missile with M2 (12.7mm)

  • Mk44 (30mm) with M240 (7.62mm)

  • M242 (25mm) with M240 (7.62mm)

  • Dual TOW Missile

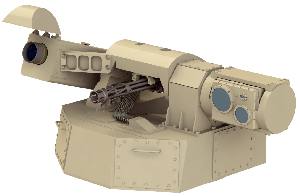

  • M134 (7.62mm)

  • M230LF (30mm)

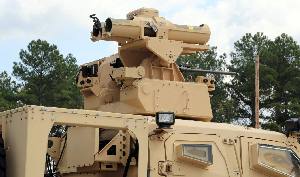

  • Dual Hellfire / DAGR Missile

Secondary Armament(s)

  • Javelin Missile

  • Single TOW Missile

  • M240 (7.62mm)

  • Non-Lethal (Smoke Grenades, Acoustic Hailer, Dazzler, Laser Designator)

  • Laser Guided Rockets

  • Hydra 70 Rocket

Target Acquisition System

  • Sighthead: 1 or 2 axis stabilized < 0.1 mrad each axis

  • ww: 7-9 micron LWIR/Color HD

  • Sensor FOV: WFOV: 7.5° (V) x 13.3° (H), NFOV: 2.0° (V) x 3.6° (H)

  • Laser Rangefinder: 10 Km Range, ±3m accuracy, eyesafe single pulse or 1 pulse per second continuous firing

  • Laser Pointers: Visible and NIR

  • Video Output: GeV 1.2

Weapon Control System

  • Stabilization: Electromechanical 2 axis stabilized, <0.5 mrad each axis

  • Azimuth: n x 360°, 0.2 mrad/sec to 1 rad/sec

  • Elevation: -10° to +60°, 0.2 mrad/sec to 1 rad/sec

  • Backup: Manual in both axes

Fire Control System

  • Weapon Director: Independently stabilized sight and weapons

  • Optional: Target video autotracker / Far target location

Protection

  • Base armor: 7.62 NATO M80 ball hemispherical protection @ muzzle velocity

  • Add-on armor: Up to 14.5mm AP all around @ 200m

  • Smoke grenades: 8 x 76mm Wegmann

Optional:

  • IED Jammer

  • Situational Awareness Camera System

  • Laser Warning System

  • Shooter Detection System

  • Sights and missiles can be armored

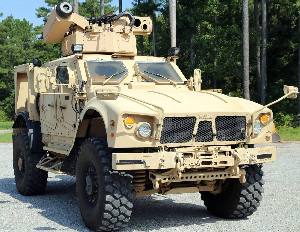

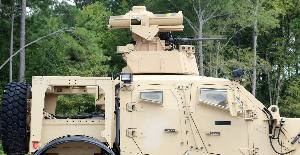

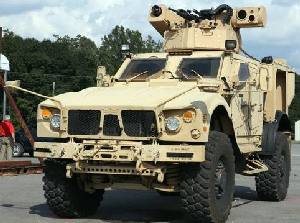

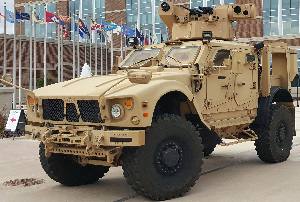

Vehicle Integration

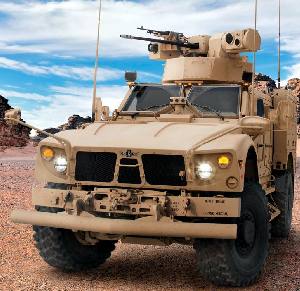

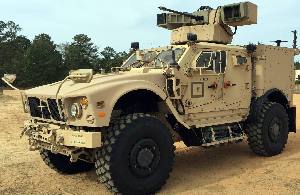

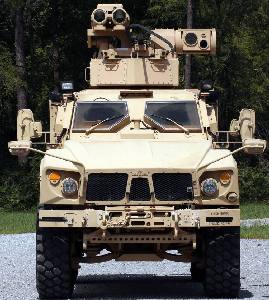

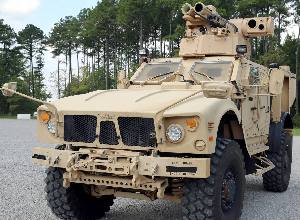

  • Base Platform: Easily integrates onto the majority of tactical and fighting vehicle platforms

  • Display: MFoCS Tablet Computer

  • Hand Controller: Customer Configurable

  • Weight: Configuration Dependent

  • Power: <35A at 28 VDC Nominal (18-32 VDC Supply)

Specifications:
Property Value
Main weapon caliber (mm)
30
Number of guided missiles
2
Planes of gun stabilization
2


Has folowing part:
Total Amount
FGM-148 Javelin (Anti-tank guided missile launcher)
1
M230LF (Gun)
1



Share...
