Designation:

CS/VA1

Info
Manufacturer: Poly Technologies, Inc.
Product type: Auxiliary Vehicles
Name: Patrol Vehicle

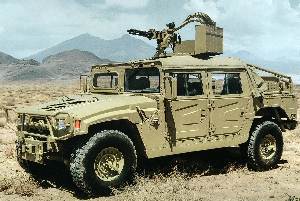

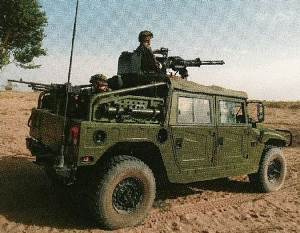

The CS/VA1 light strike vehicle combines low weight, high speed, good cross-country mobility and maneuverability with fast attack firepower. It is configured for fast strike, tactical recon and patrol missions.

The overhead main weapon can be a 12.7mm rotary MG, a 12.7mm heavy MG, a 0.50 Browning MG or a 40 mm automatic grenade launcher. With optical sights, it can assault fast targets, e.g. low-level aircraft, light armoured vehicles and speed boats, as well as soft targets.

Depending on different tactical requirements, the auxiliary armament can be a 7.62 mm general purpose MG, a 5.56 mm squad MG, etc. On-board adaptors for automatic rifles and RPGs are also available.

Specifications:
Property Value
Crew
4
Number of wheels
4
Number of drive wheels
4
Weight (kg)
4600
Length (mm)
4698
Width (mm)
2183
Height (mm)
1980
Max. road speed (km/h)
105
Max. road range (km)
500
Ground clearance (mm)
410
Fording depth (mm)
750
Elevation (degree)
60
Depression (degree)
-8
Traverse arc (degree)
360
