Designation:

TEBER-30/35 RT

Info
Manufacturer: FNSS Defence Systems Inc
Product type: Turrets
Name: Remote controlled weapon station

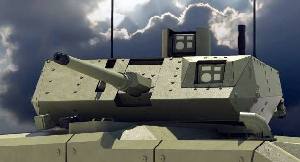

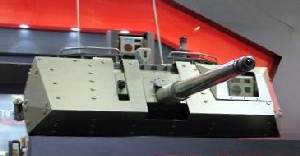

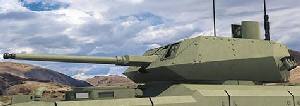

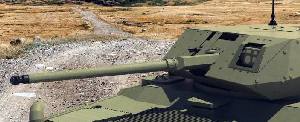

The TEBER-30/35 RT is a medium caliber turret that can be deployed on wheeled and tracked armored vehicles, is offered in two configurations. TEBER 30/35 RT enables the gunner and commander to control the weapon station through the consoles of the turret inside of the vehicle.

Given that the TEBER-30/35 RT, unlike conventional turrets, does not have any basket structure in remote controlled vehicles, the extra interior space available provides a significant advantage to the user. In addition, the gunner can use the system in a more comfortable environment.

The TEBER-30/35 RT incorporates the latest technologies in turret drives, fire control, protection and lethality. It can work night and day under all weather conditions and battle environments thanks to its integrated sensors and other electronic systems. Its compact dimensions and low weight makes the TEBER 30/35 RT an ideal choice for different types of armored vehicles.

TEBER-30 RT, as the main armament, consists of an Mk44 30x173mm dual-feed automatic cannon with 250 ready-to-fire rounds and has a maximum cyclic rate of fire of 200 rounds/minute. TEBER-35 RT as the main armament consists of an Mk44 35x228mm dual-feed automatic cannon with 100 ready-to-fire rounds and has a maximum cyclic rate of fire of 200 rounds/minute. Two different types of ammunition loaded in the double-chambered ammunition box of the turret feed the gun and ensure the neutralization of various targets. In the main armament different types of ammunition can be used, primarily high explosive, anti-armor or programmable airburst ammunition. In particular, programmable ammunition ensures that the detected target can be effectively engaged. The 30/35mm automatic cannon and coaxial machine guns provide the crew with the ability to effectively engage a wide spectrum of targets.

SuperShot 40mm (40x180mm) ammunition can also be used in the TEBER-30 Turret. The 30mm canon can be easily converted by a simple replacement on the field to fire SuperShot 40mm ammunition.

Secondary armament equipment consists of 7.62mm Mk52 or 7.62 machine guns and 750 ready-to-fire rounds. The major advantages of the Mk7.62mm chaingun are that misfire stoppages are eliminated by the electrical extraction of the unspent cartridge, as well as the high reduction rate in highly toxic propellant gases.

The most critical feature of the TEBER-30/35 RT is that it allows ammunition reloading from inside the vehicle under high armor protection. Thanks to this feature, the necessity of the crew to leave the vehicle for ammunition resupply under battle conditions has been eliminated and personnel safety has been increased.

A bank of four 76mm grenade launchers is mounted on both sides of the turret towards the front. These can be replaced by grenade launchers of other calibers with respect to the customer requirements.

The gun turret drive system is electrical, with two axis stabilization capability to ensure high accuracy of fire on the move. The turret can rotate in a traverse axis 360 degrees, continuous with weapon elevation from -10 to +45 degrees with rates of more than 60 degree/second.

The TEBER-30/35 RT has an advanced fire control capability with the help of its onboard fire control computer and two axis stabilized independent sight system. The system can generate a kinematic lead solution to increase the first-round-hit probability for stationary/moving targets and it ensures more effective ammunition utilization.

The dual axis stabilized sight system includes a long wave or mid wave thermal imager, a day camera with wide and narrow fields of view, and a laser range finder. An automatic target tracking system is also fitted on the sight system.

The TEBER-30/35 RT also has a two axis stabilized 3600 panoramic commanderís sight with thermal imager, day camera and laser range finder on the top plate, enabling hunter/killer capability.

Thanks to the independent power source integrated in the turret and user-configurable intelligent power distribution system; the turret drive, gun firing and sighting systems can be electronically used for an extended period of time.

The TEBER-30/35 RT shell is made of all-welded aluminum armor with add-on composite and steel armor providing ballistic protection up to STANAG 4569 standard.

Mission specific features

  • Suitable for Installation on Wheeled or Tracked Armored Vehicles

  • Highly Effective Weapon System for Multiple Threat Scenarios

  • Hunter-Killer Capability

  • Independent Stabilized Sight Systems with Advanced Fire Control

  • Automatic Target Tracking

  • All-Round Armor Protection

  • Ammunition Reloading Under High Armor Protection

  • Low Weight

  • Low Profile

  • Smart Power Distribution System

Specifications:
Property Value
Main weapon caliber (mm)
30
Ammunition of the main gun
250
Auxiliary gun calibre (mm)
7.62
Ammunition of the auxiliary gun
750
Traverse arc (degree)
360
Elevation (degree)
45
Depression (degree)
-10
Slew rates in Azimuth (deg/sec)
60
Slew rates in Elevation (deg/sec)
60
Planes of gun stabilization
2
Length (mm)
3580
Width (mm)
2350
Height (mm)
660


Has folowing part:
Total Amount
Bushmaster II/MK44 (Gun)
1
