Designation:

AJBAN 440A

Info
Manufacturer: NIMR Automotive LLC
Product type: Auxiliary Vehicles
Name: Tactical vehicle

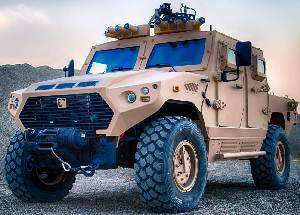

The AJBAN 440A is a highly mobile 4×4 protected vehicle incorporating the latest technologies in ballistic and blast protection. Designed for the harshest environments, the vehicle offers exceptional off-road capability as well as unparalleled reliability and performance.Due to the modular nature of the vehicle, it can be configured to suit a variety of operational roles and catering for various mission systems. This allows users to have a single fleet for a multitude of requirements whilst ensuring common logistic support and thereby lower the lifecycle cost.

NIMR vehicles are designed to meet military standards, with their lifespan far exceeding that of militarised commercial vehicles, up-armoured vehicles or those based on commercial drivelines.

The evolving global threats mean operational users are required to seek industry leading platforms and technologies, and the AJBAN 440A has proven itself in the most arduous environmental and combat theatres.

STANDARD EQUIPMENT

  • Battery management system (BMS)

  • Self-recovery winch

  • Central tyre inflation system (CTIS)

  • Run flat inserts (RFI)

  • Self-sealing protected fuel tank

OPTIONAL EQUIPMENT

  • Various weapon systems

  • Smoke grenade launchers

  • Critical engine ballistic protection

  • Fire suppression system

  • RPG protection net

  • Overpressure protection system against biological and chemical threats

  • Winterisation kit

  • C4I command & control

Specifications:
Property Value
Number of wheels
4
Number of drive wheels
4
Fording depth (mm)
1000
Vertical obstacle (mm)
400
Gradient (%)
60
Max. road speed (km/h)
110
Fuel capacity (l)
5600
Width (mm)
2350
Height (mm)
2350
Wheelbase (mm)
3300
Payload (kg)
1200
Weight (kg)
10750
Max. road range (km)
700
Crew
4
Operating temperature, min (degree, C)
-19
Operating temperature, max (degree, C)
49
Turning circle radius (mm)
15500
Number of forward gears
6
Engine power output (h.p.)
296
Maximum torque (Nm)
1100



AJBAN 440A quantities:
Country Qnt
TURKMENISTAN TURKMENISTAN
8
Qnt:
8
