Designation:

778 Breeze

Info
Manufacturer: Minotor-Service Unitary Enterprise
Product type: Armoured Vehicles
Name: Tracked armoured personnel carrier

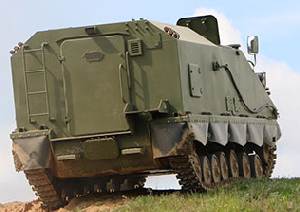

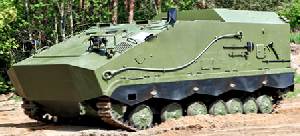

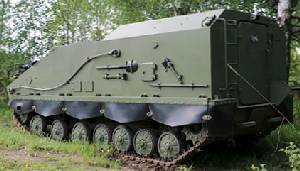

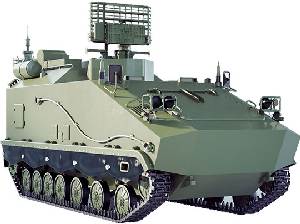

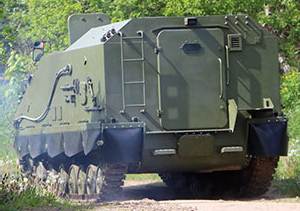

The Breeze Multi-purpose Armoured High-speed Tracked Chassis is designed as a base for special-purpose (military) vehicles to be used for various applications (mobile radars and EW vehicles, vehicles for air defence, command vehicles, ambulance vehicles, technical support vehicles, etc.).

The diesel engine, automatic gearbox and hydrostatic steering provide the chassis with superb speed and manoeuvrability, as well as simple and easy control.

Vehicle has excellent heavy-duty off-road performance and heavy road conditions.

Breeze has a superb amphibious capability with the vehicle propelled by the tracks.

The chassis is fitted with a provision for installation of an 18.7 kW independent diesel generator.

The Breeze has similar specifications with the MT-LBu Multi-purpose Light Tracked Chassis and can be used as a replacement to integrate various weapon systems or equipment.

Specifications:
Property Value
Weight (kg)
15000
Payload (kg)
2500
Length (mm)
6515
Width (mm)
2400
Height (mm)
2450
Ground clearance (mm)
390
Engine power output (h.p.)
300
Number of cylinders
6
Number of forward gears
6
Number of reverse gears
1
Crew
2
Ground pressure (kg/sm2)
0.59
Max. road speed (km/h)
75
Max. road range (km)
400
Fuel capacity (l)
280
Vertical obstacle (mm)
500
Trench (mm)
1600
Max. water speed (km/h)
5
Power-to-weight ratio (h.p./t)
19.95
