Designation:	K806
Manufacturer:	Rotem Company, Technical Research Institute
Product type:	Armoured Vehicles
Name:	Wheeled armoured personnel carrier

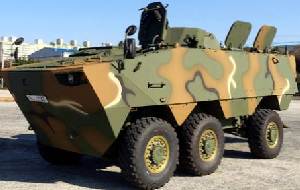

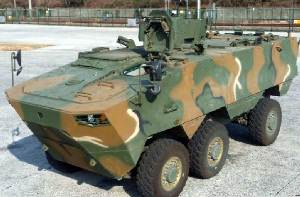

K806 is an 6x6 armored personnel carrier designed by Hyundai Rotem to meet the needs of the South Korean army. Development began in 2012. Before it was accepted by army, it was known as KW1.

Specifications:
Property	Value
Number of wheels	6
Number of drive wheels	6
Crew	2
Troops	9
Weight (kg)	16000
Length (mm)	6700
Width (mm)	2700
Height (mm)	2500
Main weapon caliber (mm)	12.7
Engine power output (h.p.)	420
Max. road speed (km/h)	100
Max. road range (km)	800
Max. water speed (km/h)	10
Gradient (%)	60
Side slope (%)	30
Vertical obstacle (mm)	500
Trench (mm)	1500
Fording depth (mm)	1200
